Chapter 3: Introduction to Timing Analysis: Trigger on an Edge
Set Up the Bus Labels
Set Up the Bus Labels
1 Select the Format tab.
Now you will organize the data you are capturing by creating a label
and assigning the channels of interest to that label.

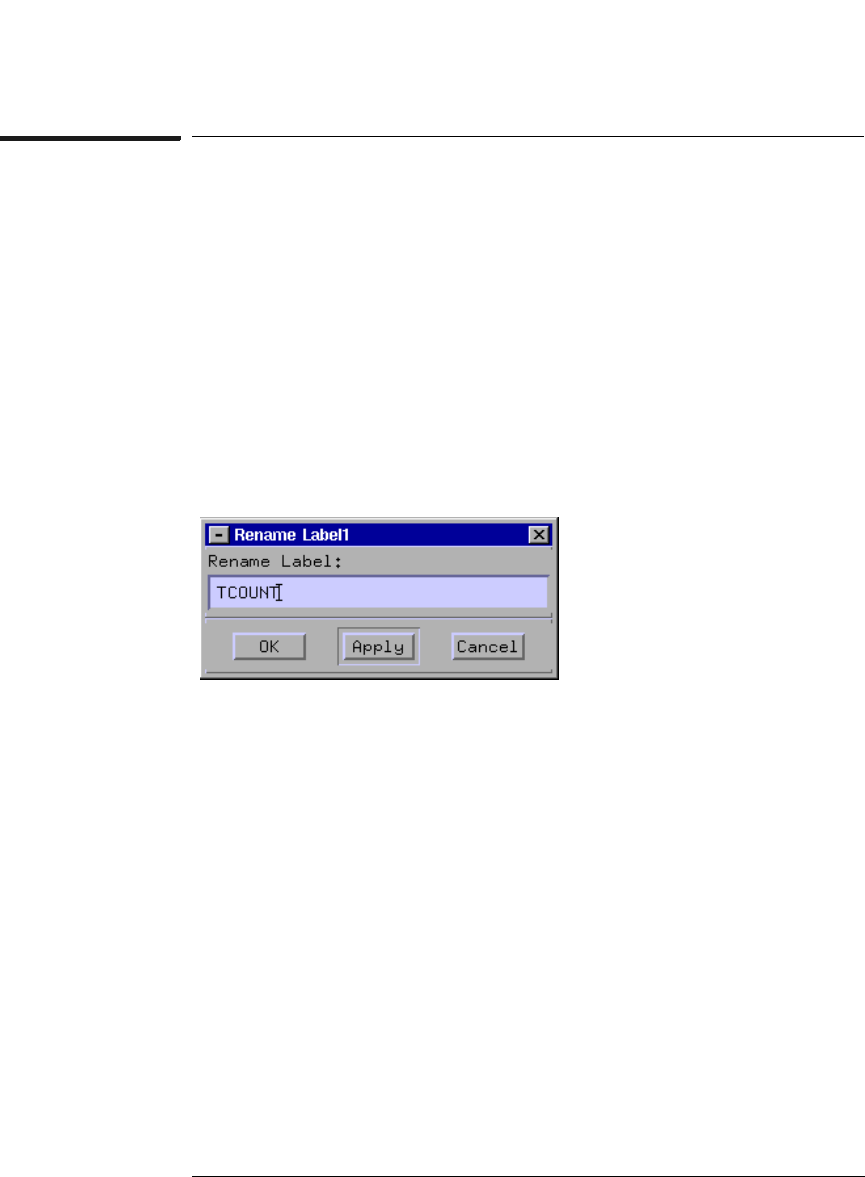

2 Click on Label1, select Rename..., and change the label name to
TCOUNT.
TCOUNT is short for timing count, and represents the source of the
signals.
3 Click OK.
4 To the far right of TCOUNT, click on the field showing the 16
channels of pod 1.
