Introduction to Timing Analysis:
Trigger on an Edge
Timing analysis with a logic analyzer is much like tracing a signal with a
digital oscilloscope. The timing analyzer, like the oscilloscope, samples
the signal at a rate determined by an internal clock.

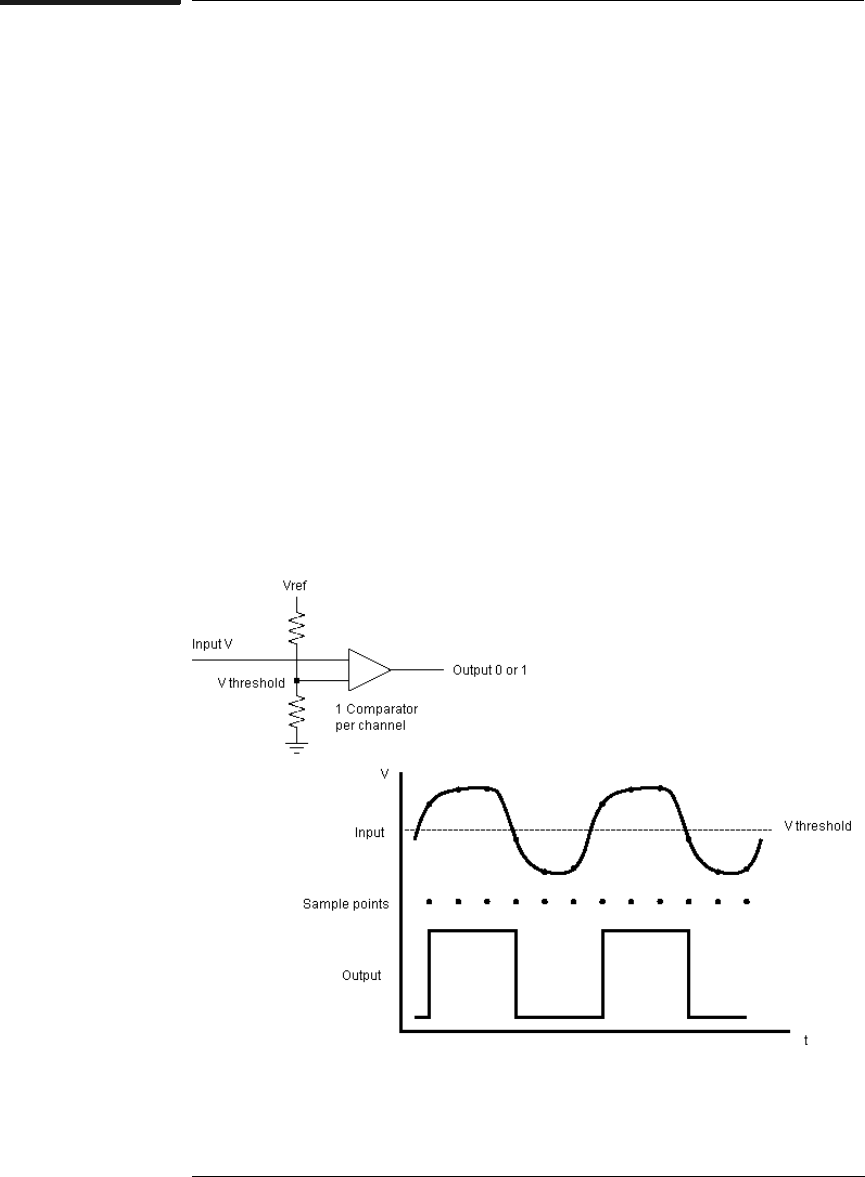

The analyzer differs from the scope in that the analyzer uses one-bit
comparators to output two signal levels, a logic 1 or 0. This allows the
analyzer to have many more channels than the oscilloscope. With a
large number of channels, the analyzer can show the timing
relationship of logic between various signals. For example, you could
look at the logic levels on control lines versus address lines or data
lines.
.
