25
Chapter 2: Before You Begin
Create the RESET File

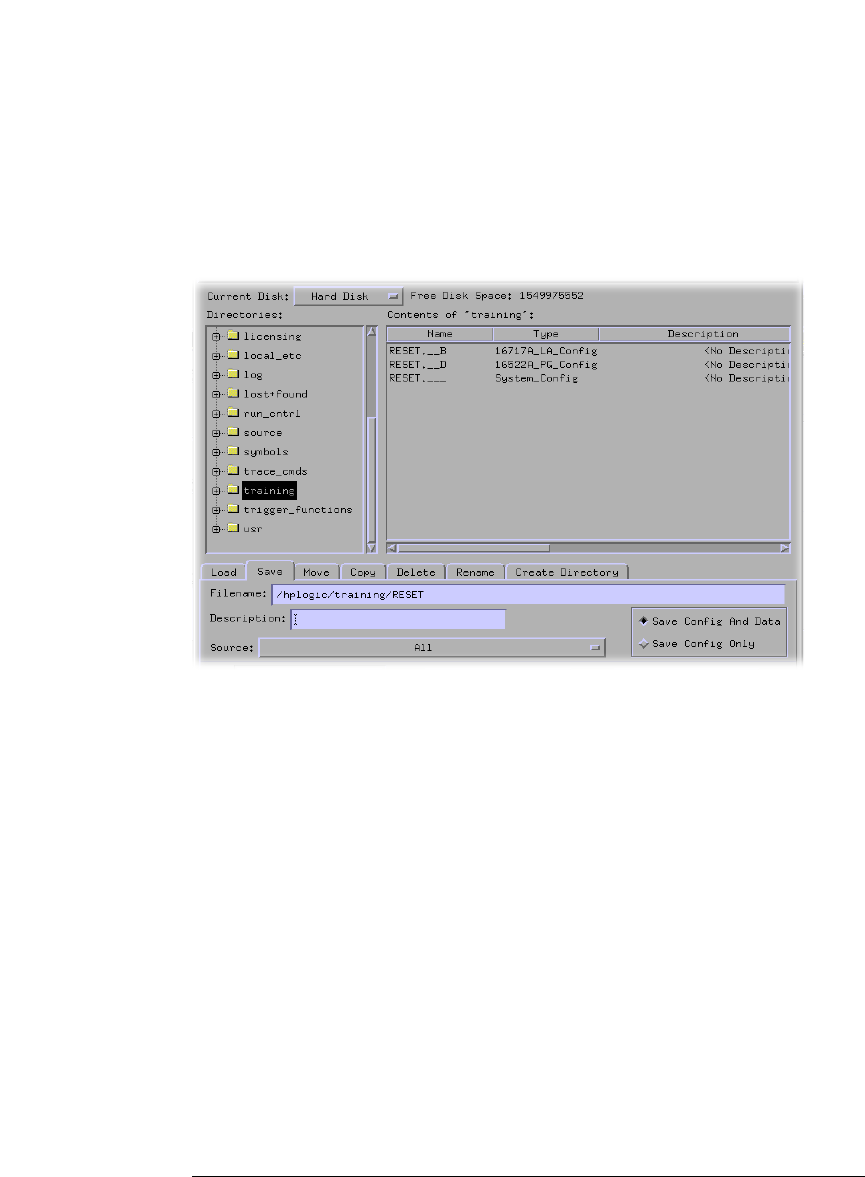

12 Under Directories, go to the directory /hplogic/training/, and
click the Save tab.
13 In the File Name field, after /hplogic/training/, type RESET.
14 Click Save to save the default setting of all the measurement
modules you are using. You will load this RESET file before each
chapter to default all settings. If you connect the credit card
board to a different analyzer instrument, you must start at step 4
to make a new RESET file.
15 Click Close to close the File Manager window.
16 Go to the Setup window for the logic analyzer and click File, and
then Close.
17 If you activated the oscilloscope, go to the Oscilloscope window
and click File, and then Close.
18 If you activated the pattern generator, go to the Pattern
Generator window and click File, and then Close.
