Chapter 2: Before You Begin
Activate the Scope
If you have an oscilloscope module, you’ll need to create a RESET file
for it also.
6 In the Main System window, click on the oscilloscope module and
select Setup/Display... from the pop-up menu.
Activate the Pattern
Generator
If you have a pattern generator module, you’ll need to create a RESET
file for it also.
7 In the Main System window, click on the pattern generator
module and select Setup... from the pop-up menu.
Create the Training
Directory
If you have already created the directory /hplogic/training/, go to step 12.

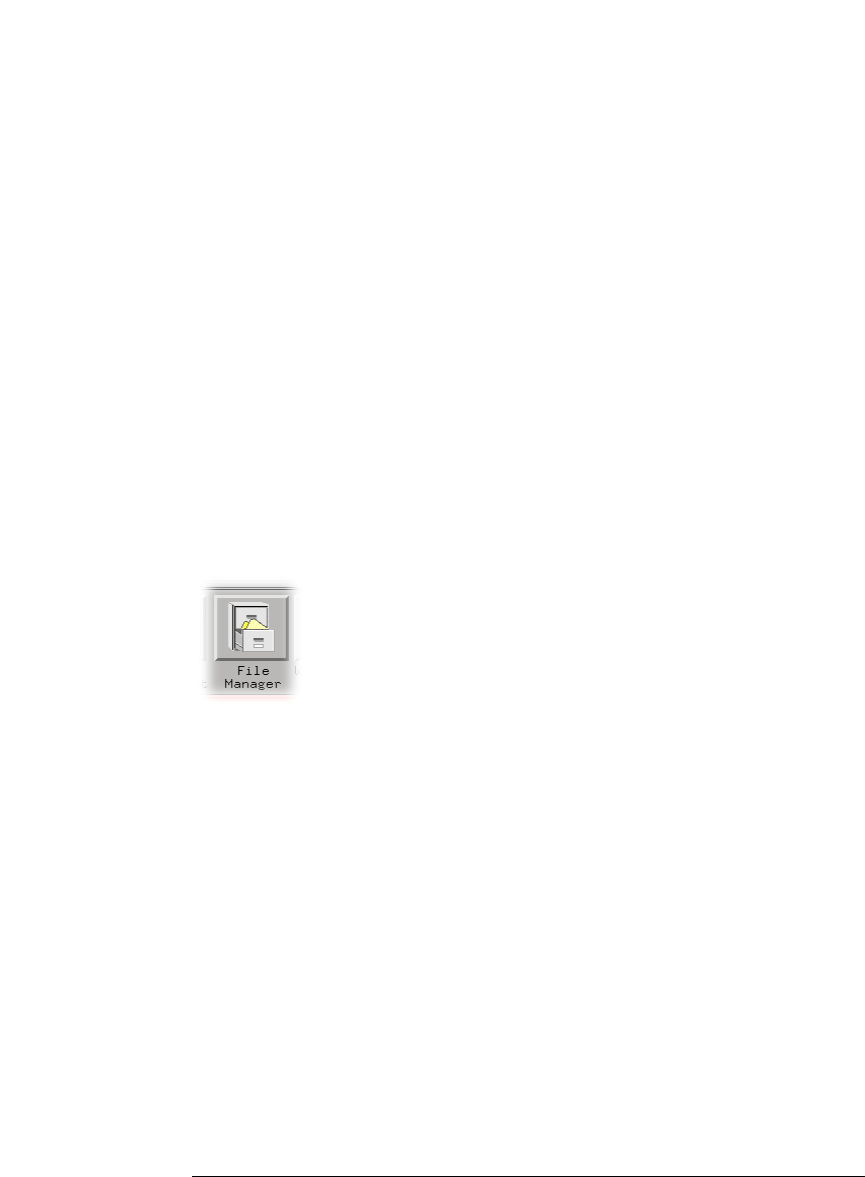

8 Click on the File Manager icon in the tool box.
9 Click the Create Directory tab.
10 Under Directories, go to the directory /hplogic/.
11 In the New Directory name field, type ‘training’, and then click
Create Directory.
