Before You Begin
Before you begin the exercises you must connect the credit card board,
power up the Agilent 16600/700 logic analysis system, and save a
default settings file named RESET for resetting the system at the
beginning of each chapter.
Start Here
If you have not already connected the credit card board to the logic analyzer, follow
all of the steps in this chapter.
If you have connected the credit card board, go to step 3.
Connect Pod 1 to the
Credit Card Board
Agilent logic analyzers group their probes into pods. Each pod contains
16 data probes and a clock probe. For all exercises, you will use Pod 1
to probe J1 on the credit card board.

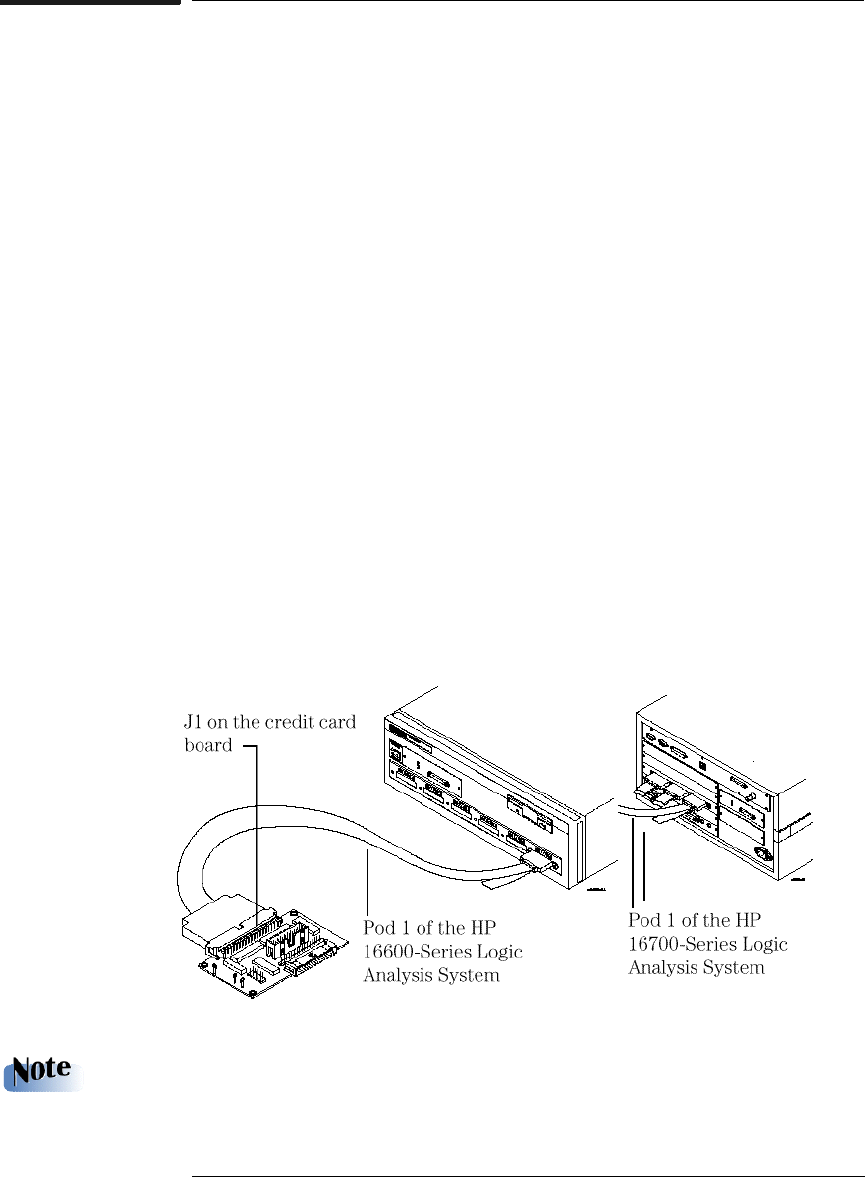

1 With the power off, connect Pod 1 to J1 on the Credit Card
Board.
If you are using a multi-card analyzer, connect pod 1 of the master
board to the credit card board.
