Chapter 10: Setting the Jumpers
To Set the Jumpers
To Set the Jumpers
1 Pull the appropriate jumper off of the pins of J5.
2 Push the jumper onto the correct pins of J5. You only need to
change jumpers that differ from the settings in table 10-1.
Set the jumpers at their default settings for all chapters. Table 10-1
shows you the default settings and the settings for each chapter.
Chapter 8, "Trigger the Oscilloscope with the Timing Analyzer,"
requires you to change the setting of the glitch jumper.
Glitch ON
Glitch OFF

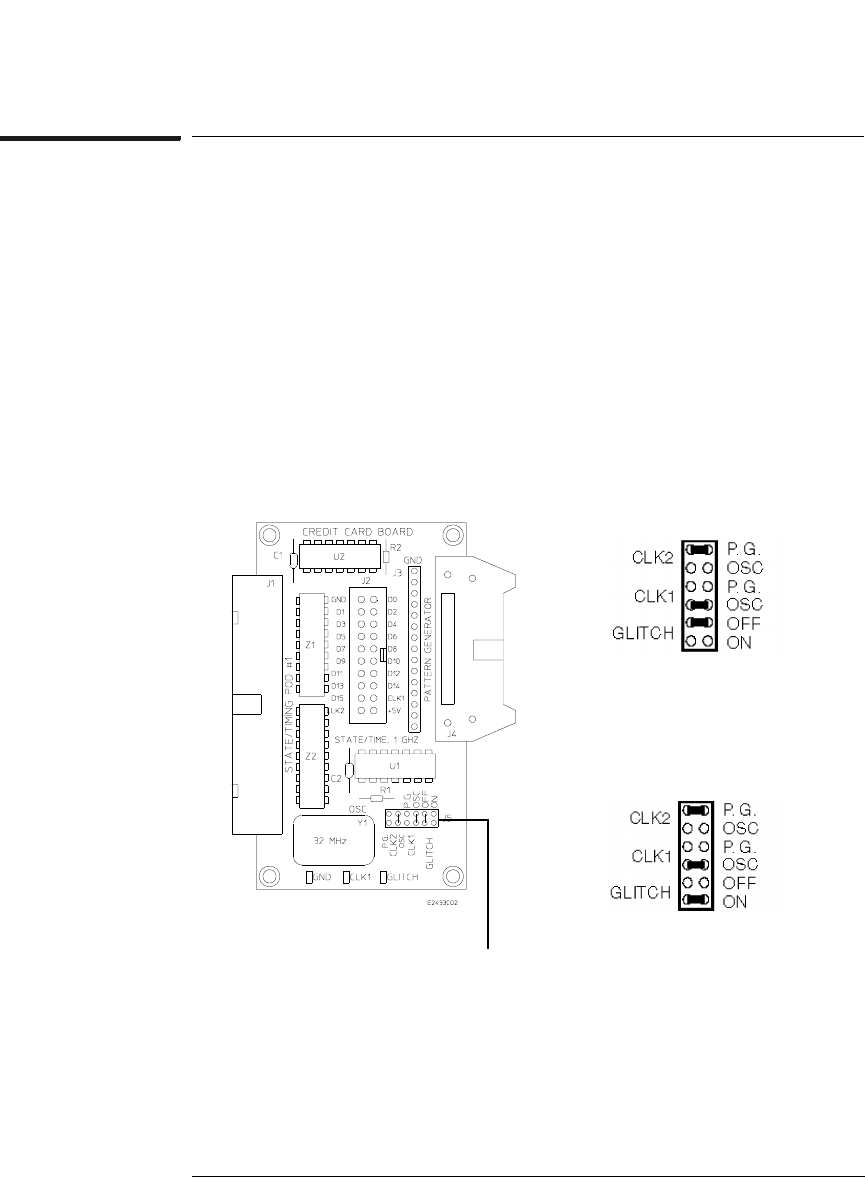

The jumpers are set here.
