Chapter 9: Using the Pattern Generator
Start the Pattern Generator and View the Walking Ones Pattern
Let’s expand the data so that you can look at all eight data lines.
7 Right-click and hold on PATGEN all, and select Expand.
8 To the right of the Seconds/div field click on the down arrow
until the field is set to 20 ns. This will zoom in on the waveform.

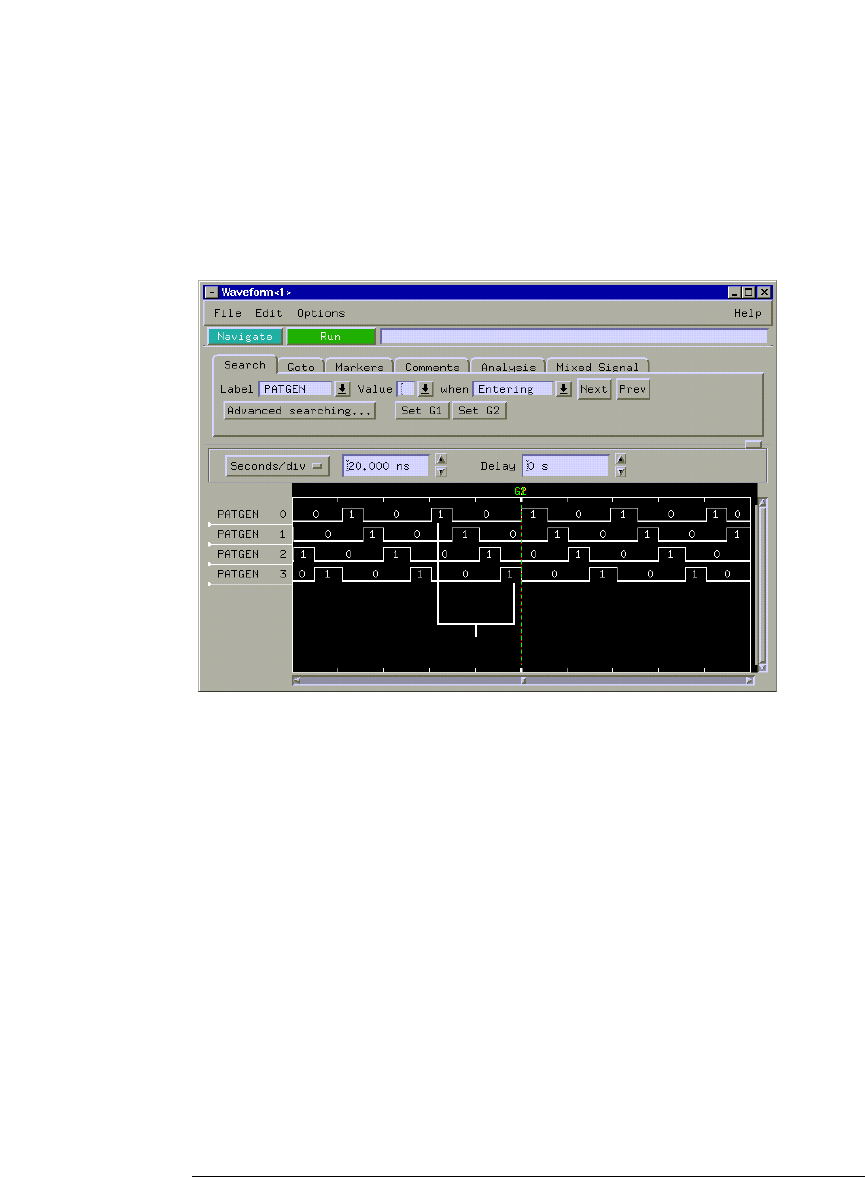

This is the walking ones pattern.
