Chapter 9: Using the Pattern Generator
Program the Pattern Generator Output
Program the Pattern Generator Output
The Sequence tab is used to program the pattern generator output. In
this exercise, you will change the base field to binary and program the
"walking ones" program.
1 Select the Sequence tab.
2 Under the label PATGEN, right-click on Hex and select Binary
from the pop-up menu.

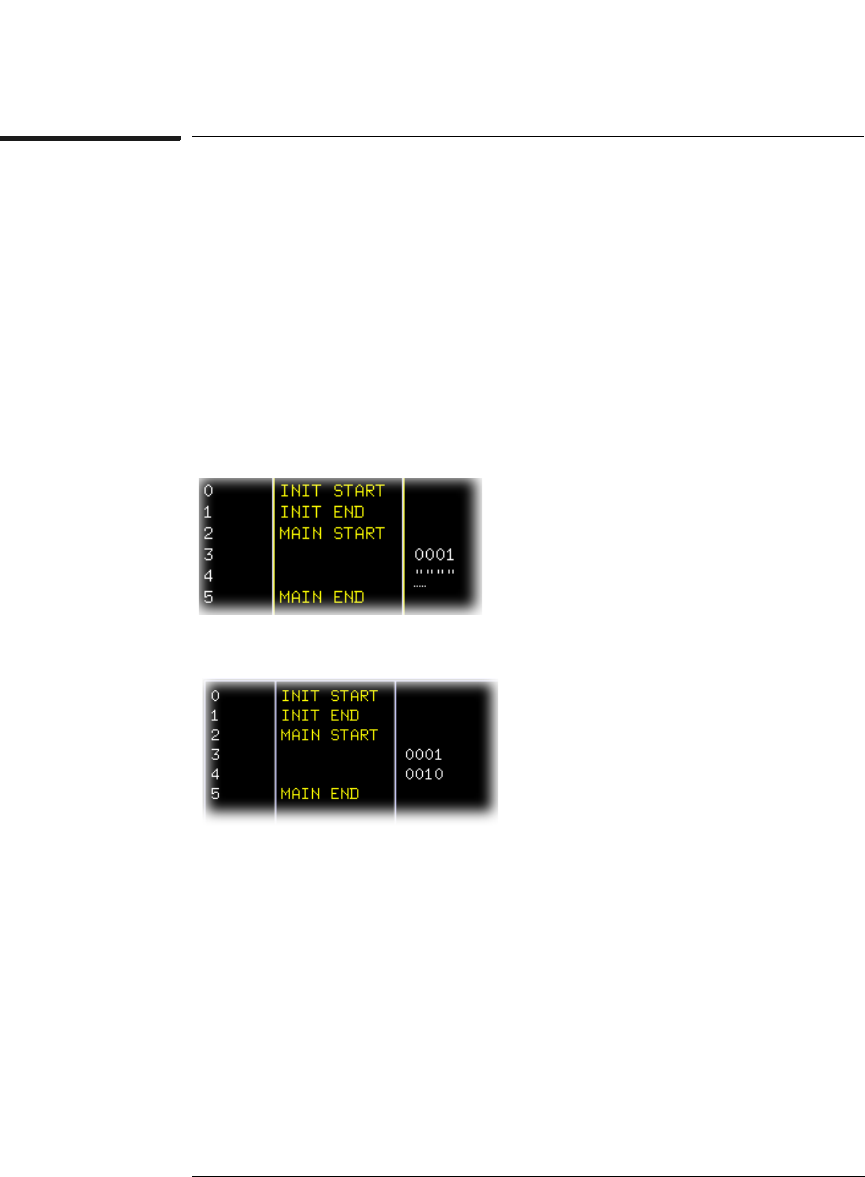

3 On line 3, after MAIN START, type ‘0001’ over ‘0000’.
4 On line 4, type ‘0010’.
