Chapter 9: Using the Pattern Generator
Set Up the Bus Labels
Set Up the Bus Labels
1 Select the Format tab.
Now you will organize the data you are capturing by creating a label
and assigning the channels of interest to that label.

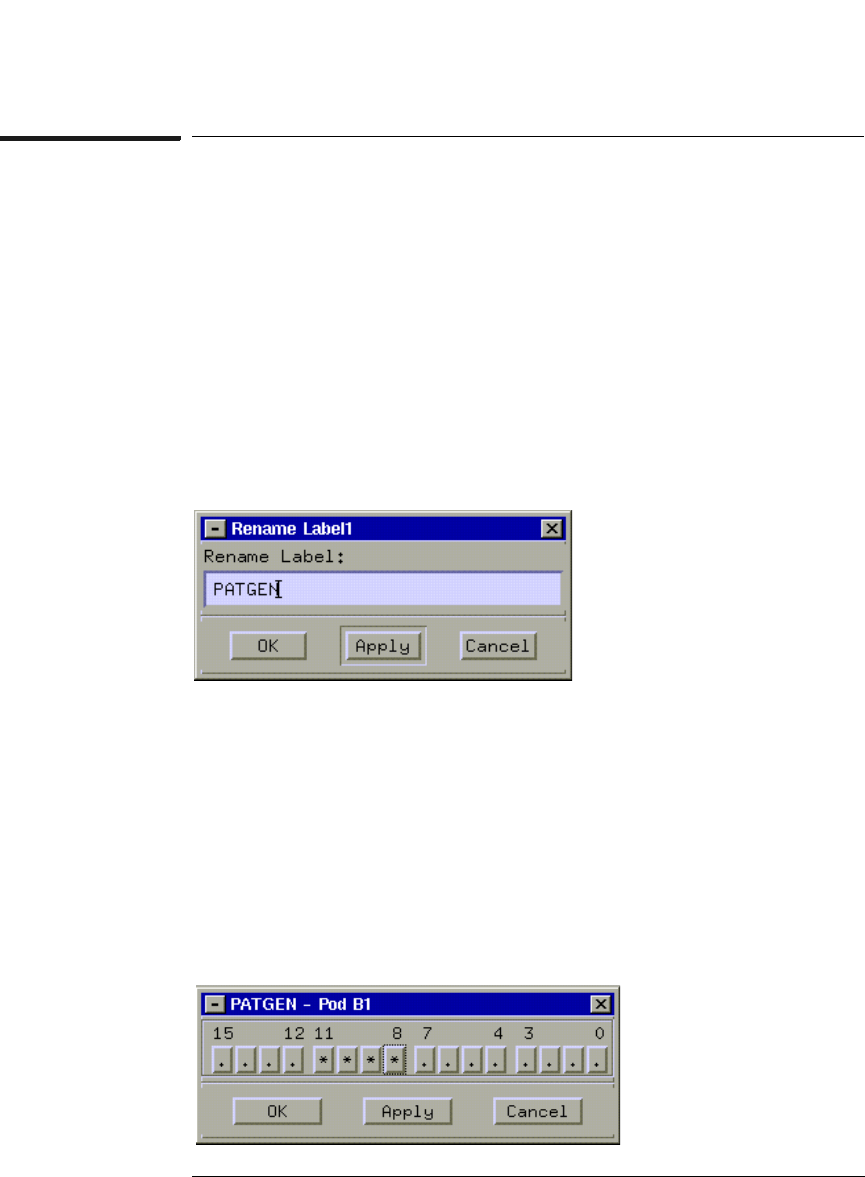

2 Click on Label1, select Rename..., and change the label name to
PATGEN.
PATGEN is short for pattern generator, and represents the pattern
generator data captured by the timing analyzer.
3 Click OK.
4 To the far right of PATGEN, click on the field showing the 16
channels of pod 1.
5 Select Individual... from the pop-up menu.
6 If there are asterisks ‘*’ in the PATGEN window, right-click and
hold to select ‘................’ from the pop-up menu.
This changes the bits from being assigned to the label PATGEN to
being unassigned.
7 Click on channels eleven through eight, and then click OK.
