Chapter 9: Using the Pattern Generator
Connect the Pattern Generator
8 Under Contents of ‘training’, click on the RESET file with the
file description of 16522A_PG_Config. This is the pattern
generator you have connected to the credit card board.
9 Click Load.
10 Click Yes.
11 Click Close.
Connect the Pattern Generator

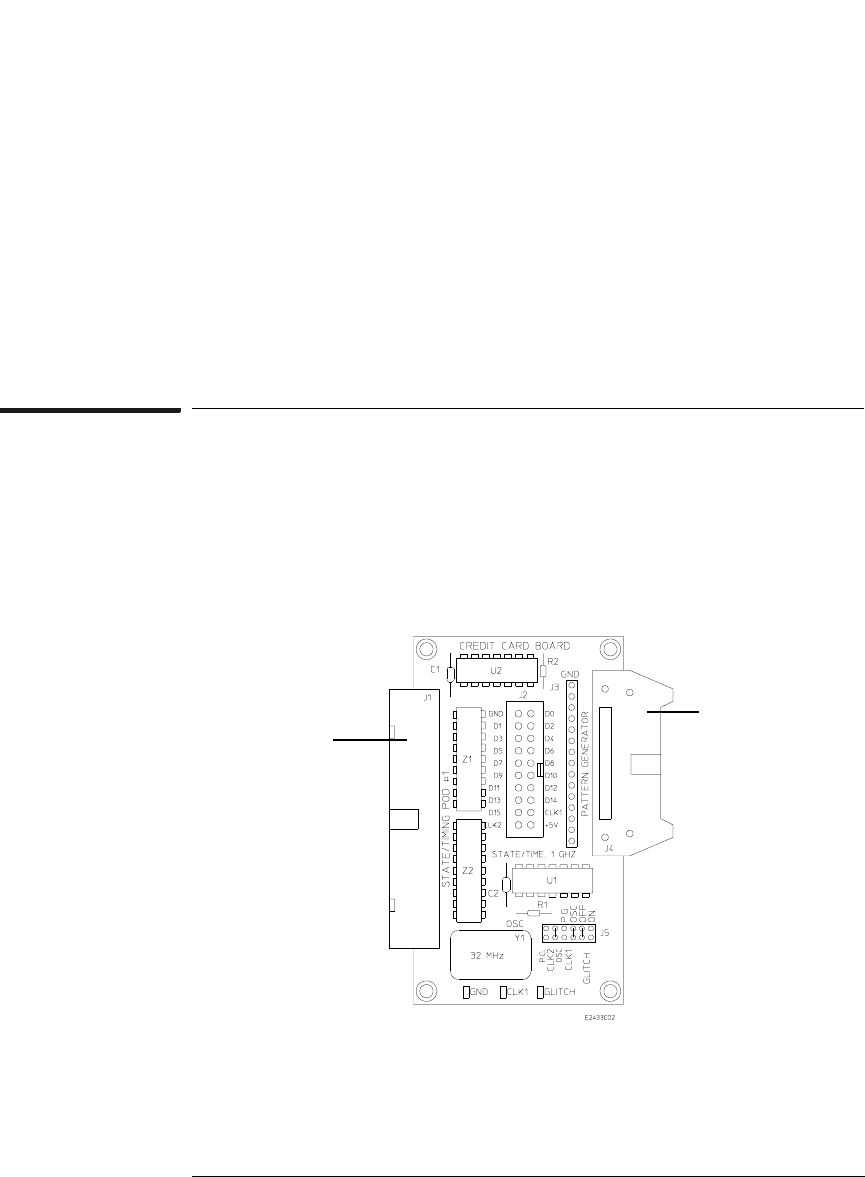

Connect the pattern generator output Pod 4 to the TTL Data Pod.
Then connect the TTL Data Pod to J4 (labeled PATTERN
GENERATOR) on the training board.
Pod 1 of the analyzer
connects here.
The TTL Data Pod
connects here.
