114
Chapter 8: Trigger the Oscilloscope with the Timing Analyzer
Add the Analog Waveform to the Timing Waveform
Add the Analog Waveform to the Timing
Waveform
Adding the oscilloscope waveform to the timing waveform display is
useful for seeing the glitch in analog and how the glitch affects the
other signals.

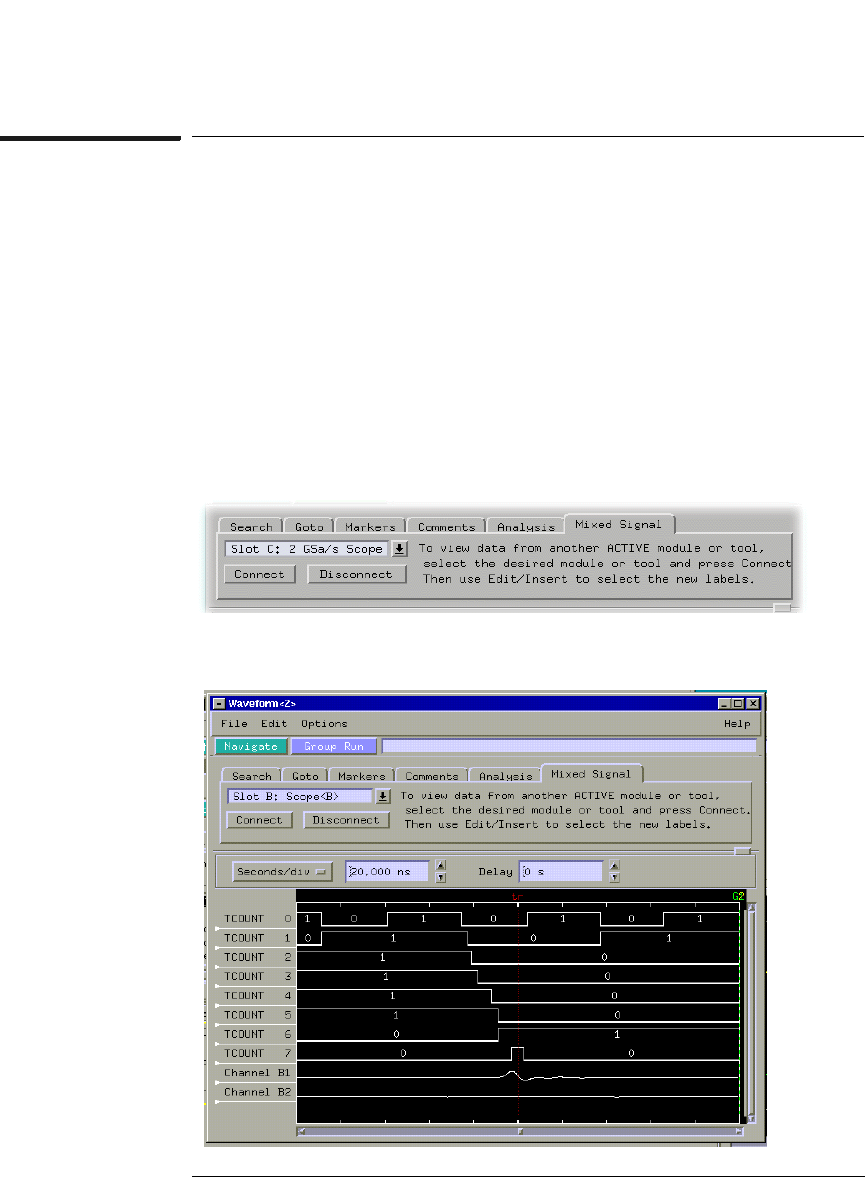

1 In the timing analyzer Waveform window, click the
Mixed Signal tab.
2 Click the down arrow, and select the oscilloscope.
3 Click Connect.
Now you can see the channels of the oscilloscope next to the timing
waveform.
