113
Chapter 8: Trigger the Oscilloscope with the Timing Analyzer
Run the Timing Analyzer and Oscilloscope

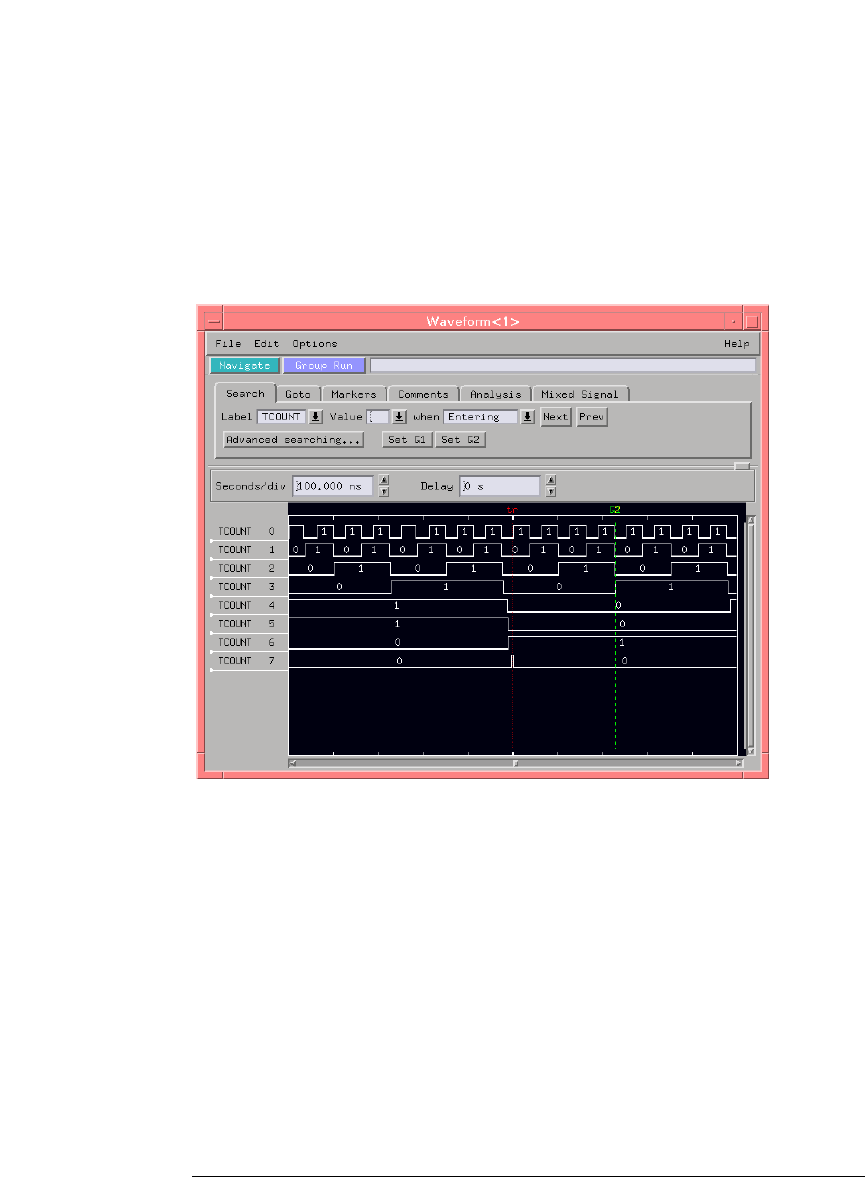

6 Click on TCOUNT all to select it. Right-click and hold on
TCOUNT all, and select Expand from the pop-up menu.
7 Enlarge the Waveform window so that you can see all 8 data
lines with some extra room after TCOUNT7. You will add the
oscilloscope waveform here.
