111
Chapter 8: Trigger the Oscilloscope with the Timing Analyzer

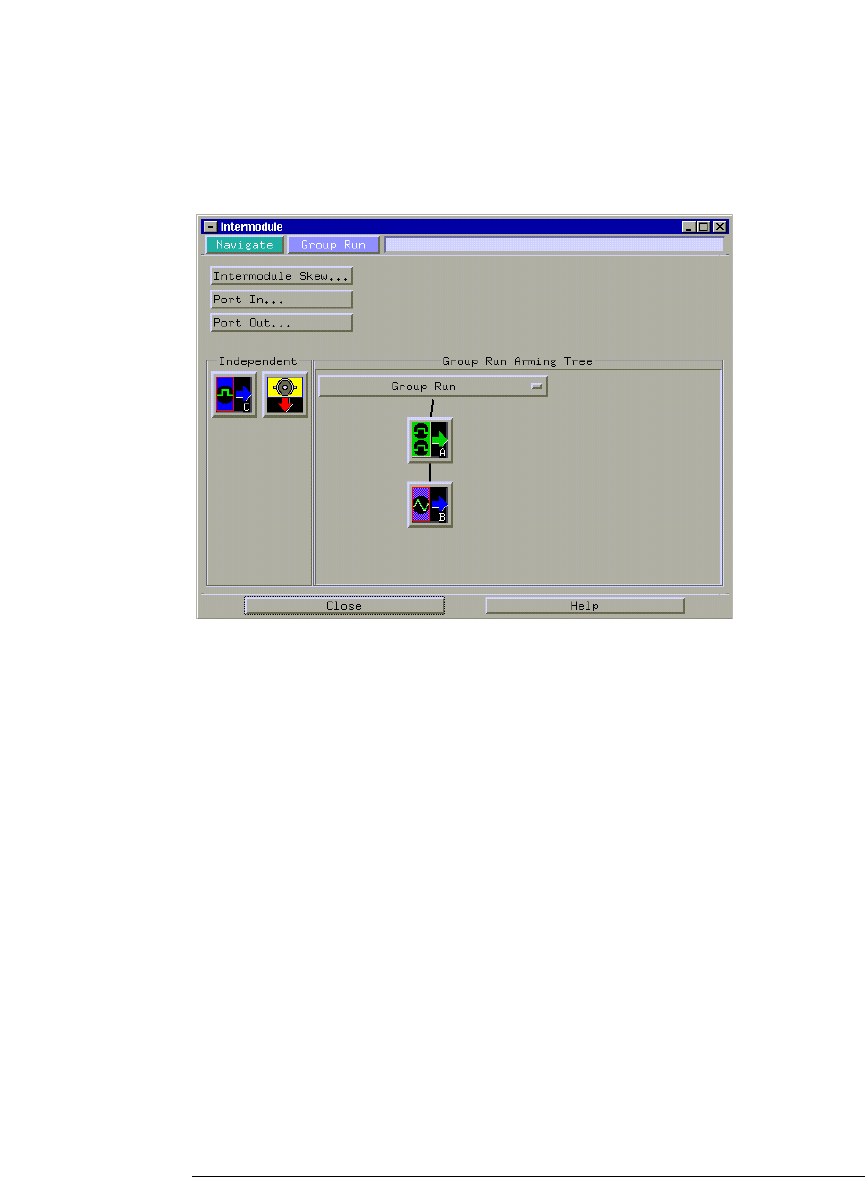

Set Up the Analyzer to Arm the Oscilloscope
This tells the oscilloscope to wait for the timing analyzer to trigger. We
specified this when we told the oscilloscope to trigger immediately
after the timing analyzer.
7 Click Close to close the Intermodule window.
