Chapter 8: Trigger the Oscilloscope with the Timing Analyzer
Get the Analog Waveform on the Display
Get the Analog Waveform on the Display
Before setting up the timing analyzer and trigger, let’s get the
waveform on the display.

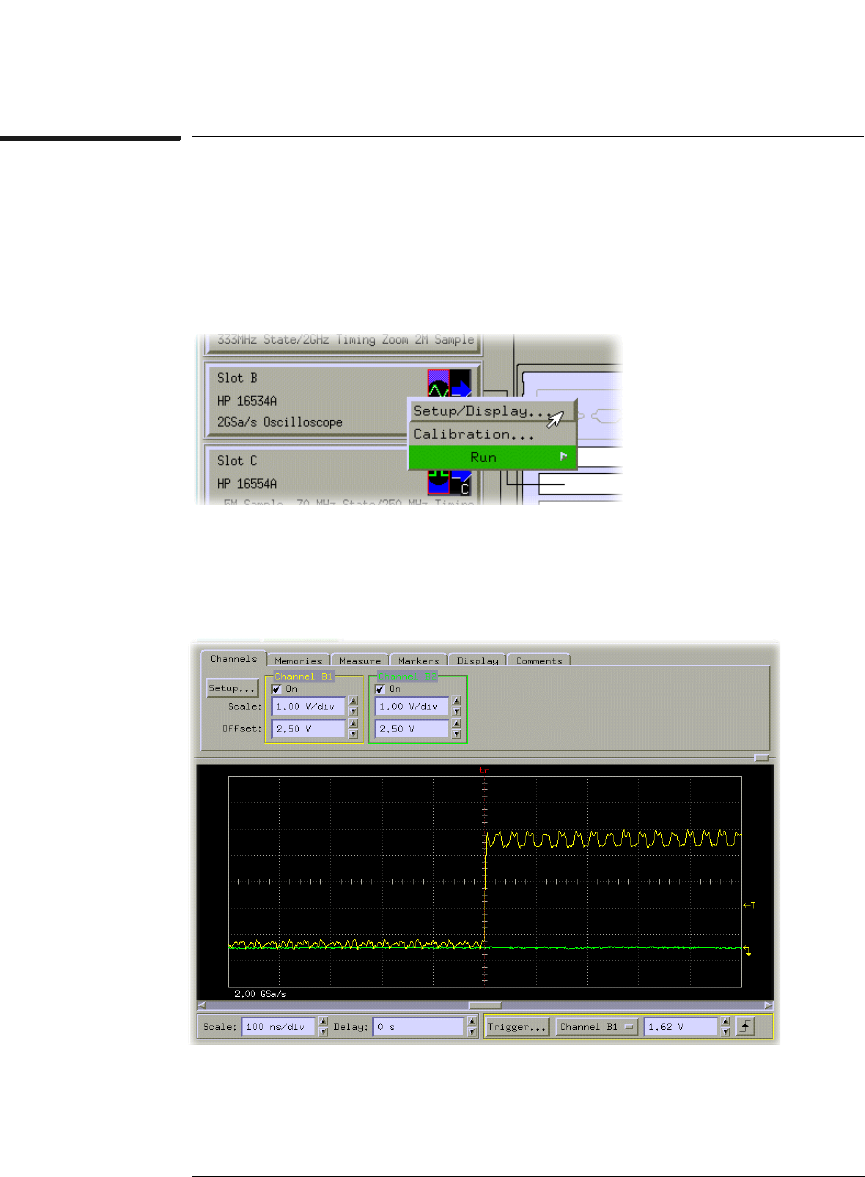

1 In the Main System window, click on the Oscilloscope module.
2 Select Setup/Display... from the pop-up menu.
3 In the Display window, click on Run to get the waveform on the
display.
Your waveform may look different than the one in the graphic above.
For right now, we want to see a waveform showing that the
oscilloscope is connected to the credit card board.
