Chapter 8: Trigger the Oscilloscope with the Timing Analyzer
Connect the Oscilloscope Probe and Turn the Glitch On
Connect the Oscilloscope Probe and Turn the
Glitch On
1 Connect the oscilloscope probe to channel 1 on the oscilloscope.
2 Connect the probe tip to the test point labeled “Glitch” on the
credit card board.
3 Connect the probe ground lead to the test point labeled “Ground”
on the credit card board.
4 Set the jumpers on the credit card board as shown below.
Chapter 10 “Setting the Jumpers” for more information on the jumper
settings of J5 on the credit card board.

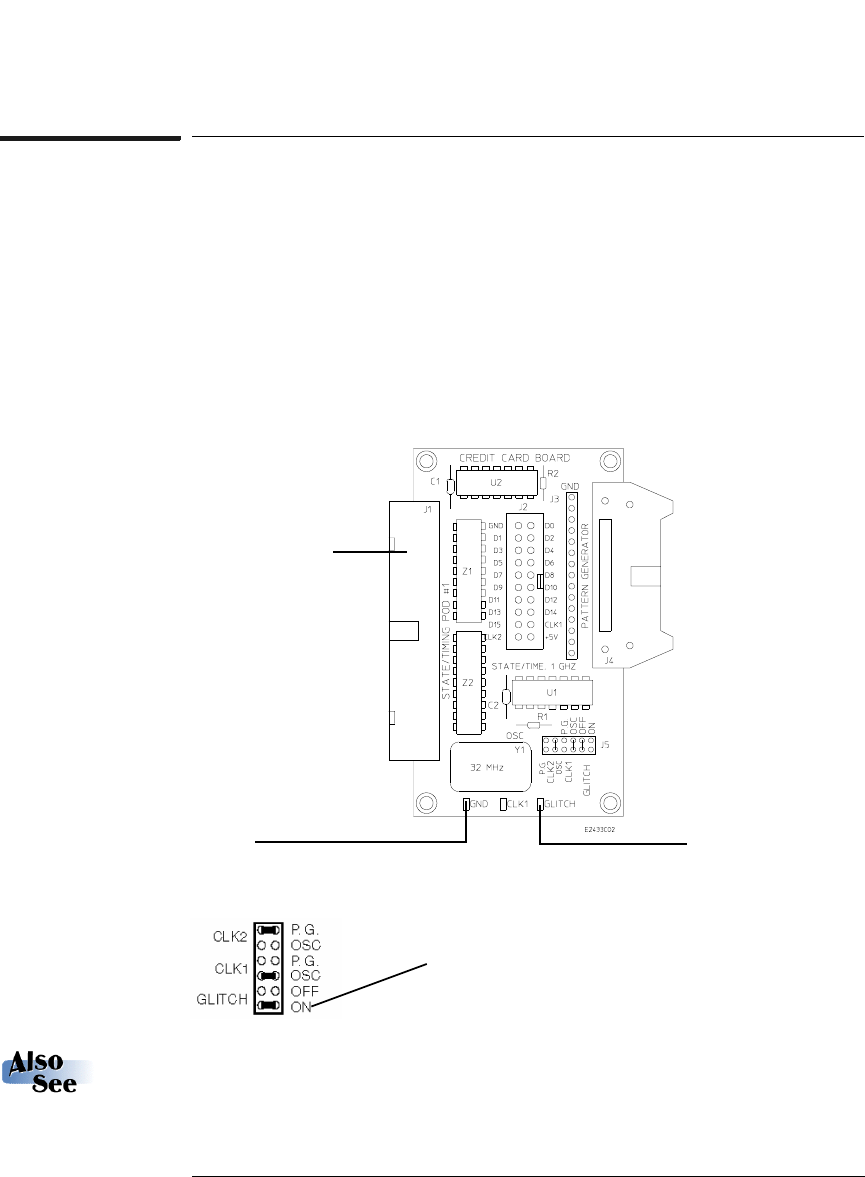

Pod 1 of the analyzer
connects here.
The oscilloscope
ground connects
here.
The oscilloscope
probe tip connects
here.
The GLITCH is set to ON.
