Technical data

5
TECHNICAL DATA - AGA GC3

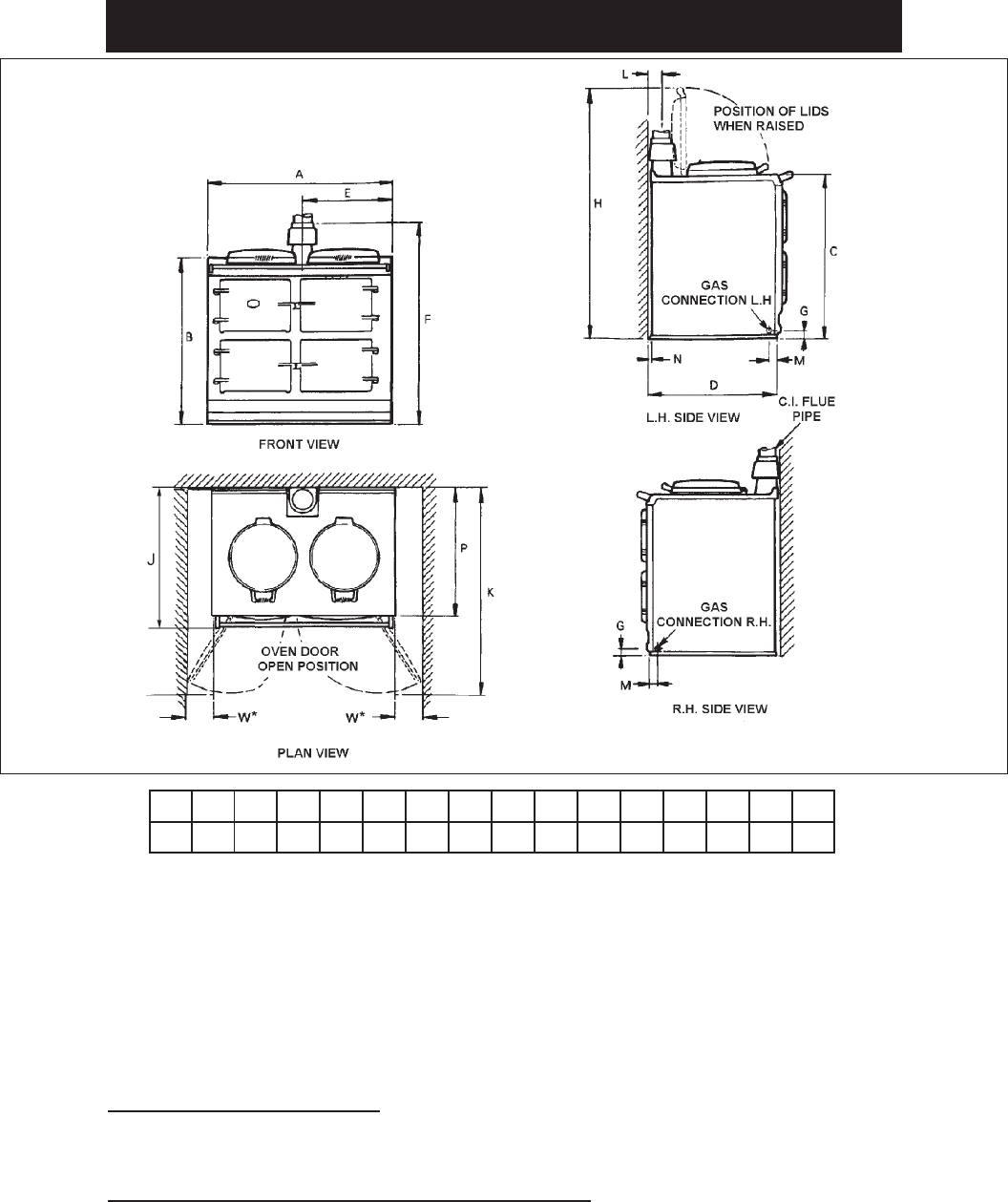

Fig. 1 DESN 512841 B
PLEASE NOTE: SIDE CLEARANCE W IS ALSO REQUIRED ON THE LH SIDE FOR THE
BAKING OVEN DOOR.
COOKER DIMENSIONS
When surveying for a cooker installation the actual clearance required for the ‘body’ of the
appliance should be increased overall by 10mm beyond the figures quoted above. This allows
safe margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance could be critical.
GAS CONNECTION GC3 ONL
Y
1/4” BSP supply pipe, with 1/4” BSP to 15mm fitting provided.
GAS CONNECTION GC3M WITH MODULE (IF FITTED).
See Fig. 1A, (page 6) and refer to Module Installation Instructions.
ABCDE FGHJKLMNPW
mm 987 889 851 679 467 1035 41 1330 756 1125 73 39 3 698 116
