User`s manual

________________________________________________________ 9

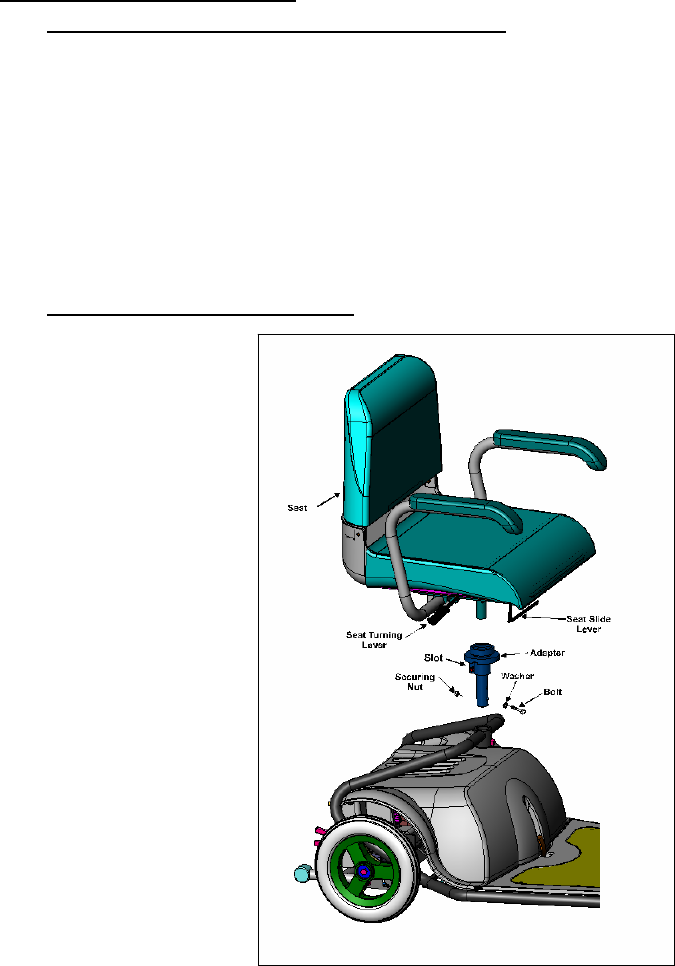

2.5 Seat Installation (Figure 11)
Seat Installation and Adjust:
a. Insert the Seat Adapter into the Seat-Bushing
(1) Verify that the Seat-Bushing slot is in forward direction.
(2) Install bolt and washer and tighten the bolts very well,
using the attached wrench.
(3) Install and tighten the securing nut very well, using attached
wrench.
(4) Install the Seat into the Seat-Bushing while the Seat is 45
degree to the side of the frame.
(5) Press the Seat Turning Lever to place the Seat forward
position.
b. Adjusting the height of the Seat
Remove nut,
bolt and washer.
Change the
Seat Adapter
height,
install, bolt and
washer and
tight strongly
the securing nut.
c. Install Seat
Upholstery.
Figure 11
