CHAPTER 2 - ASSEMBLY
2.1 Installation of the Power Unit
a. Position the Superlight power Unit on the floor so that the
anti tip is backward direction.

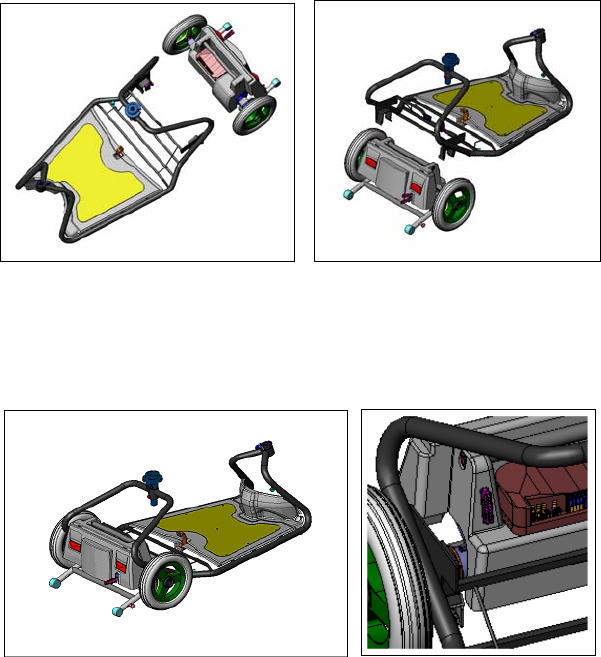

b. Lay the frame at the front of the power unit (See figure 2)
c. Lift the frame and install the frame bracket onto to power
unit square connecting bracket. Make sure the frame is
down to the end of the bracket. (See figure 3)
figure 2 figure 3
d. Secure the frame to the power unit by the anti tip securing
arrangement. Do that by releasing the knob at the right of
anti tip and pulling it upward until the knob is re secured.
(See figure 4)
figure 4 figure 4a
