CHAPTER 4 - DISASSEMBLY
4.1 Removal of Seat (See Fig. 18)
a. Remove the Rear Basket by lifting it up from its
Support Rod.
b. Remove the Seat from the Seat Adapter by
lifting the Seat straight up while turning Release
Lever is pulled only when the Seat is 45ºback
direction to the left.

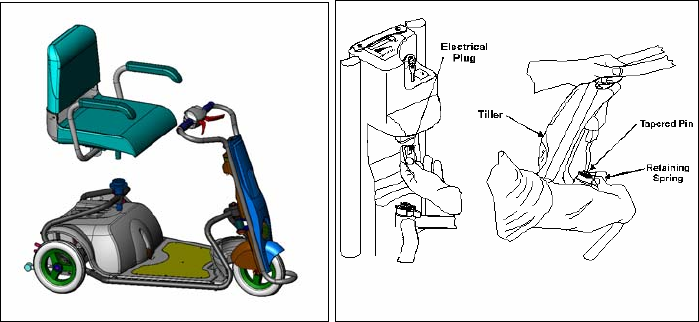

figure 18 figure 19
4.2 Separation of Tiller from Frame (See Fig. 19).
For ease of operation we recommend working on the left side
of the SUPERLIGHT (facing forward ):
a. Disengage the Electric Plug from its socket in the Tiller by
squeezing the Snap Button (located on the plug) - and pull.
b. Support the Tiller with your left hand holding the Upper Left
Rail.
c. Push the Retaining Spring with the thumb of the right hand
until it is freed from the Groove on the (black) Tapered Pin.
d. Carefully lift the Frame off the Tapered Pin and lay both
sections on the floor.
