User`s manual

________________________________________________________ 13

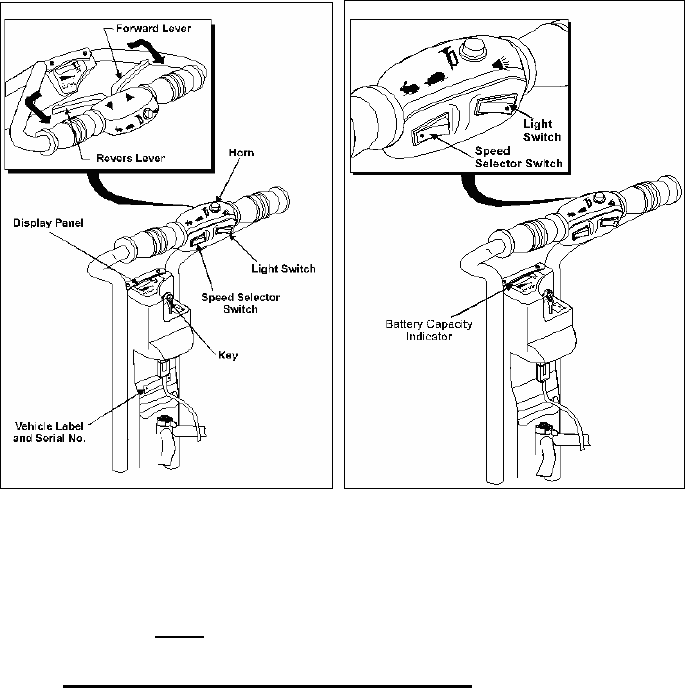

figure 14 figure 15
3.5 Set the Speed Selector switch as desired.
3.6 When “extra-power” is needed (i.e., climbing allowed slopes)
use the High
speed mode.
3.8 Battery Capacity Indicator (See Fig. 15)
The Battery Capacity Indicator is part of the Display Panel. The
indicator contains 4 red leds.
The battery capacity is proportional to the numbers of the
illuminated red leds. (Not include the green ON led).
Thus 4 Illuminated leds means: 100%-80% capacity.
Thus 3 Illuminated leds means: 80%-60% capacity
Thus 2 Illuminated leds means: 60%-40% capacity
Thus 1 Illuminated leds means: 40%-20% capacity
Thus 1 leds flashing means: 20%- 0% capacity
