FOOTPAD
WASHER (K)
LINK ARM
BOLT (J)
NUT (R) WASHER (Q)
BOLT (P)
SPACER AND SPACER RINGS
LOWER HANDLEBAR
LOWER LINK ARM
LOWER LINK ARM
SPACER
SPACER RINGS
LOWER
HANDLEBAR

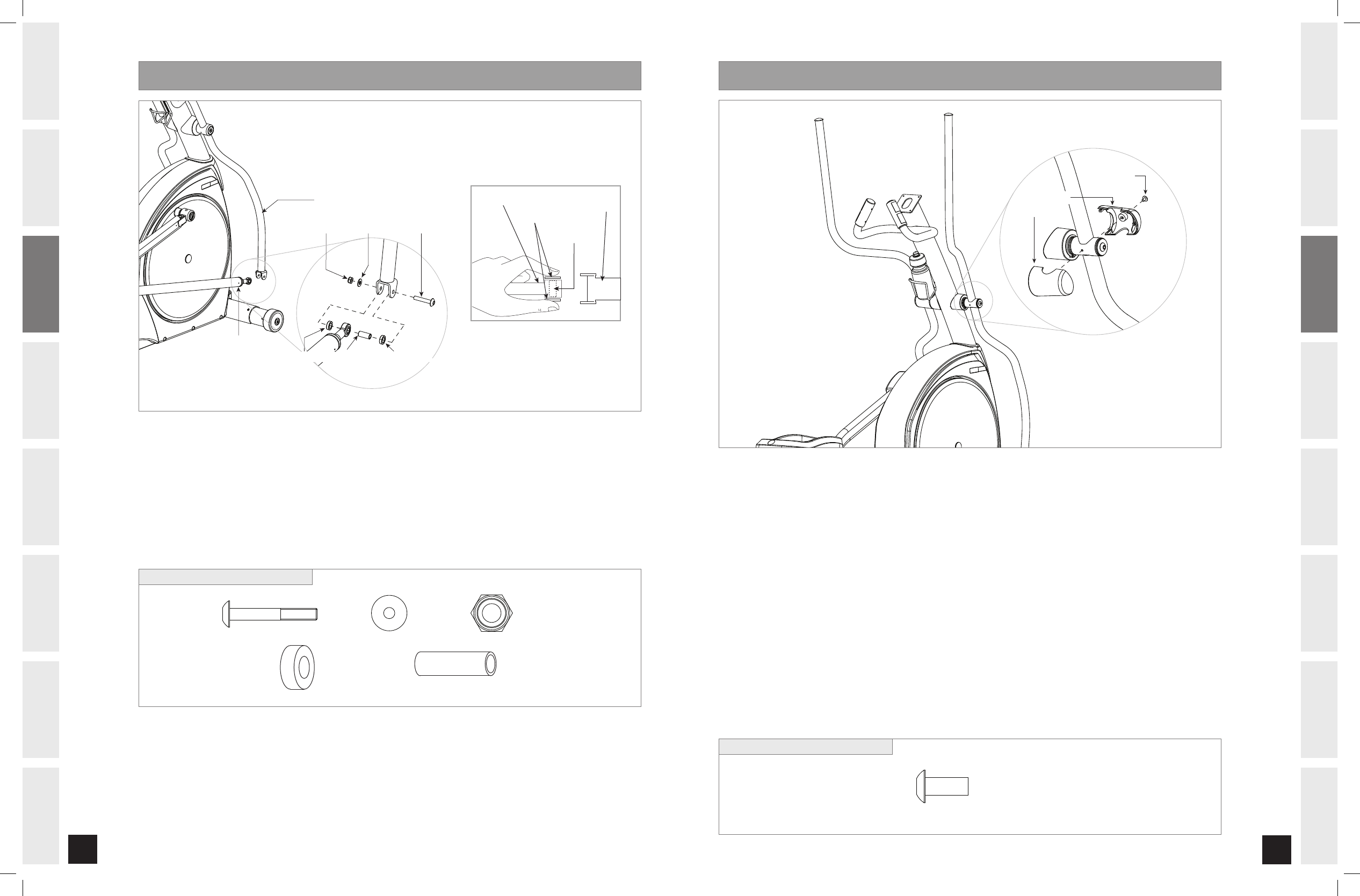

ASSEMBLY STEP 5
WASHER (Q)
Qty: 2
NUT (R)
Qty: 2
BOLT (P)
45 mm
Qty: 2
SPACER RING
Qty: 4
SPACER
Qty: 2
HARDWARE BAG FOR STEP 5 CONTENTS :
A) Open HARDWARE BAG FOR STEP 5.
B) Slide SPACER into LOWER LINK ARM.
C) Place SPACER RINGS on both sides of the SPACER. While holding SPACER RINGS, slide LOWER LINK ARM
into bottom end of LOWER HANDLEBAR.
D) Insert 1 BOLT (P) into LOWER HANDLEBAR and secure using 1 WASHER (Q) and 1 NUT (R).
E) Repeat on other side.
step 8
BOLT (S)
HANDLEBAR
COVER
A) Open HARDWARE BAG FOR STEP 6.
B) Snap HANDLEBAR COVERS together over the RIGHT HANDLEBAR. Note the position of the snap tabs on the
covers before snapping into position.
C) Attach HANDLEBAR COVERS with 1 BOLT (S).
D) Repeat on other side.
BOLT (S)
8 mm
Qty: 2
HARDWARE BAG FOR STEP 6 CONTENTS :
ASSEMBLY STEP 6
