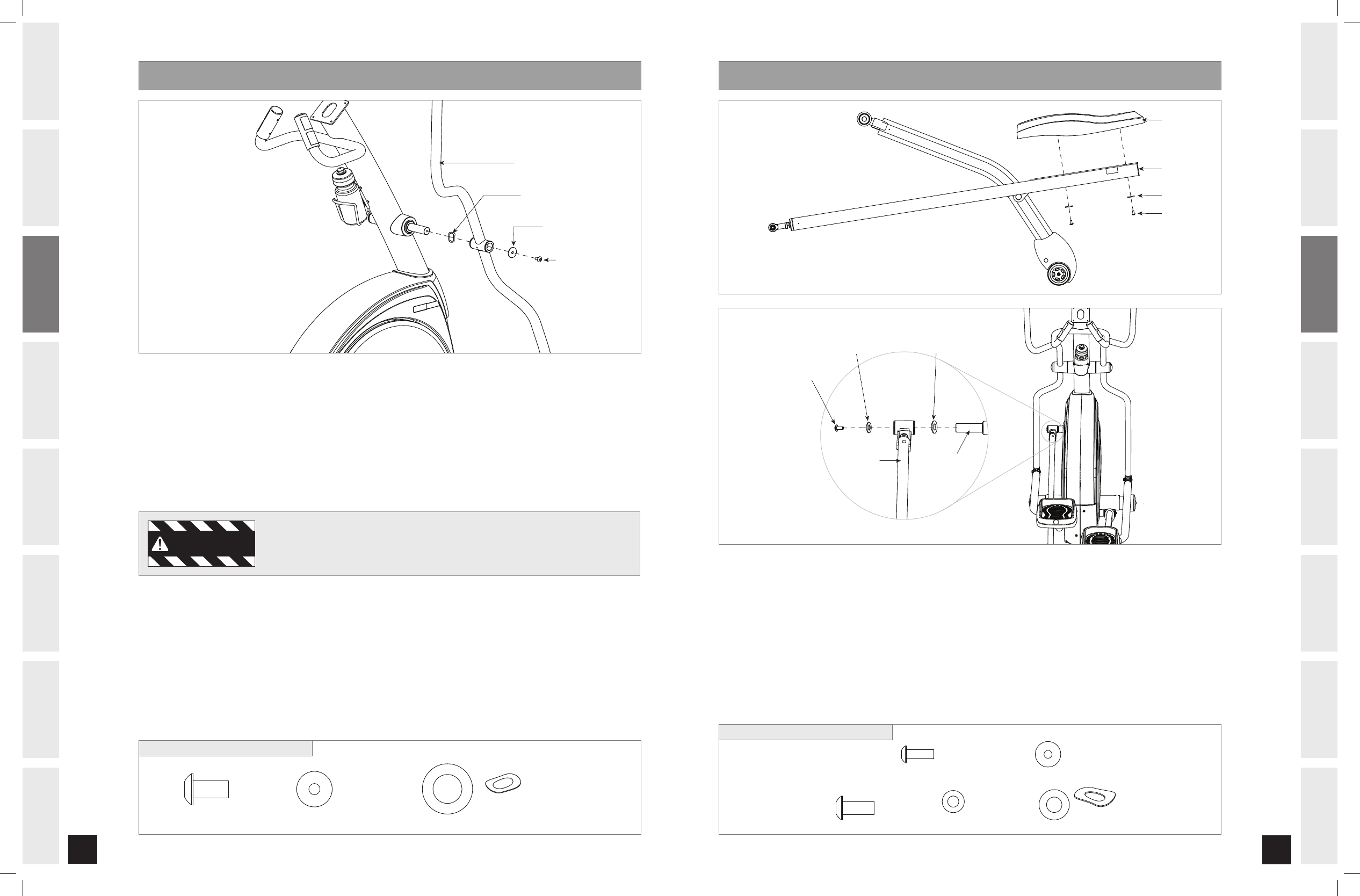

ASSEMBLY STEP 3
RIGHT HANDLEBAR
BOLT (G)
WASHER (H)
WAVY WASHER (I)
Open HARDWARE BAG FOR STEP 3.
B) Slide RIGHT HANDLEBAR onto CONSOLE MAST and attach using 1 BOLT (G), 1 WASHER (H) and
1 WAVY WASHER (I).
C) Repeat on other side.
After handlebars are assembled they will rotate freely – be cautious. Until the
machine is fully assembled, do not grab the handlebars for support.
A.
WARNING
BOLT (G)
12 mm
Qty: 2
WASHER (H)
Qty: 2
WAVY WASHER (I)
Qty: 2
angle view
HARDWARE BAG FOR STEP 3 CONTENTS :
ASSEMBLY STEP 4
FOOTPAD
WASHER (K)
LINK ARM
BOLT (J)
NUT (R) WASHER (Q)
BOLT (P)
SPACER AND SPACER RINGS
LOWER HANDLEBAR
LOWER LINK ARM
LOWER LINK ARM
SPACER
SPACER RINGS
LOWER
HANDLEBAR
A) Open HARDWARE BAG FOR STEP 4.
B) Attach FOOTPAD to LINK ARM using 4 BOLTS (J) and 4 WASHERS (K).
C) Attach PEDAL ARM to PIVOT TUBE using 1 BOLT (M), 1 WASHER (N) and 1 WAVY WASHER (O).
D) Repeat on other side.
BOLT (J)
12 mm
Qty: 8
BOLT (M)
12 mm
Qty: 2
WASHER (K)
18 mm
Qty: 8
WASHER (N)
Qty: 2
WAVY WASHER (O)
Qty: 2
SIDE VIEW
HARDWARE BAG FOR STEP 4 CONTENTS :
WASHER (K)
LINK ARM
BOLT (J)
WAVY WASHER (O)WASHER (N)
BOLT (M)
PEDAL ARM PIVOT TUBE
WHEEL COVER
