ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
There are several areas during the assembly process of an elliptical that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the elliptical could have frame parts that
are not tightened and will seem loose and may cause irritating noises. To prevent damage to the elliptical,
the assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Unpack the product where you will be using it. Place the product on a level flat surface. It is recommended
that you place a protective covering on your floor. During each assembly step, ensure that ALL nuts and
bolts are in place and partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium
Elliptical grease is recommended.
Before proceeding, find your elliptical’s serial number
located on the front stabilizer tube and enter it in the
space provided below. Also locate the model name
which is located on the mast boot.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER :
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
WARNING
TOOLS INCLUDED PARTS INCLUDED
c 5mm T Wrench
c Phillips Screw Driver
c 13/15mm Flat Wrench
c 1 Console
c 1 Console Mast
c 1 Front Stabilizer Tube
c 1 Left Handlebar
c 1 Right Handlebar
c 2 Foot Pads
c Console Mast Boot
c Power Adaptor/Power Cord
c 7 Hardware Bags

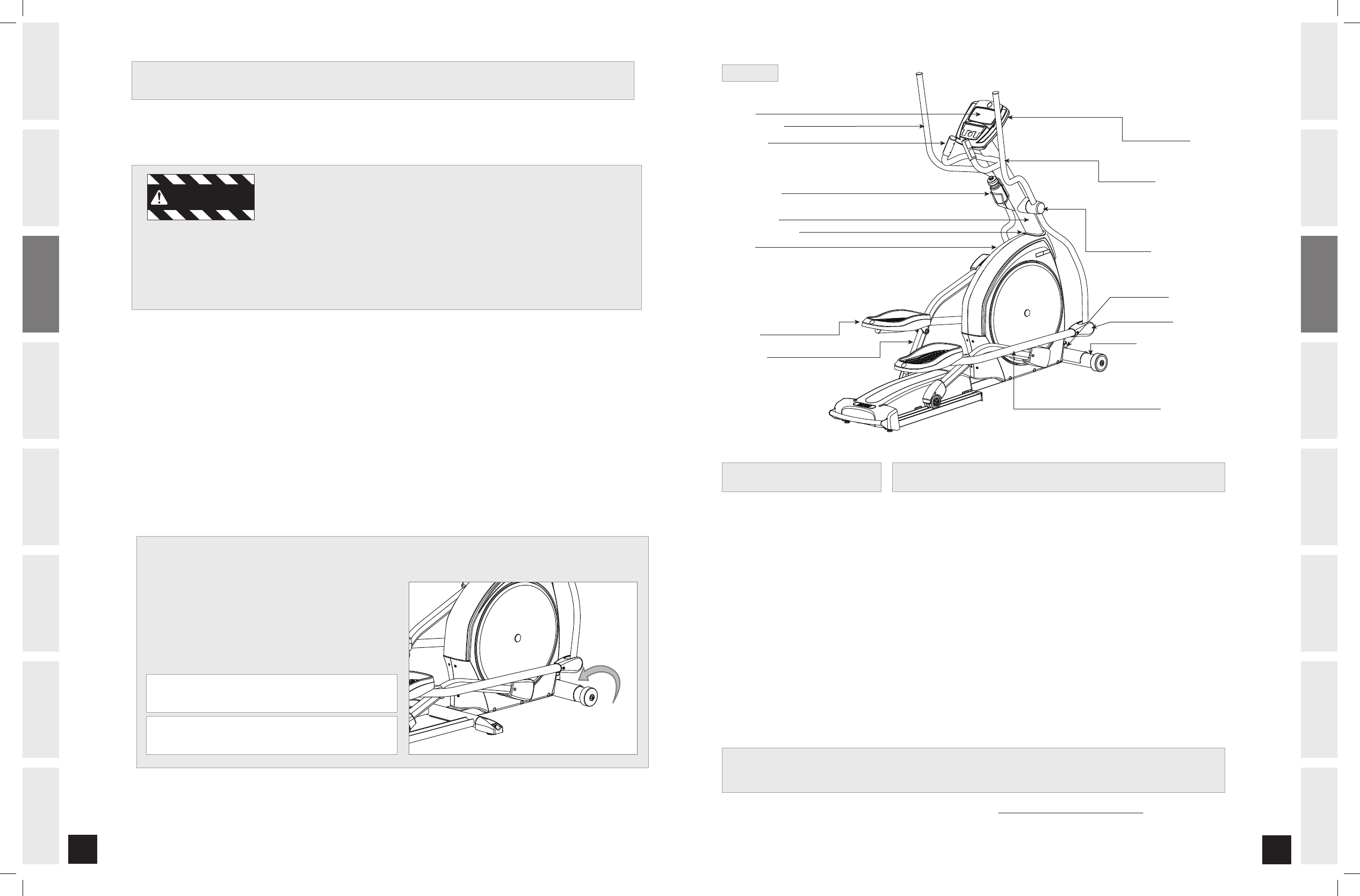

CONSOLE
RIGHT HANDLEBAR
LOWER LINK ARM
ELBOW COVER
PULSE GRIP
CONSOLE MAST
DISPLAY
FOOT PAD
PEDAL ARM
c 2 Handlebar Covers
c 2 Elbow Covers
c 2 Pedal Arm Covers
c 1 Water Bottle Holder
c 1 Water Bottle
c 2 Pedal Arms/Lower Link Arms
c 1 Top Cap
c 1 Foot Leveler Axle (3.0 AE Only)
c 2 Foot Levelers (3.0 AE Only)
BOTTLE HOLDER
POWER SOCKET
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.advancedfitnessgroup.com
HANDLEBAR COVERS
FRONT STABILIZER TUBE
CONSOLE MAST BOOT
TOP CAP
LEFT HANDLEBAR
4.0 AE SHOWN
