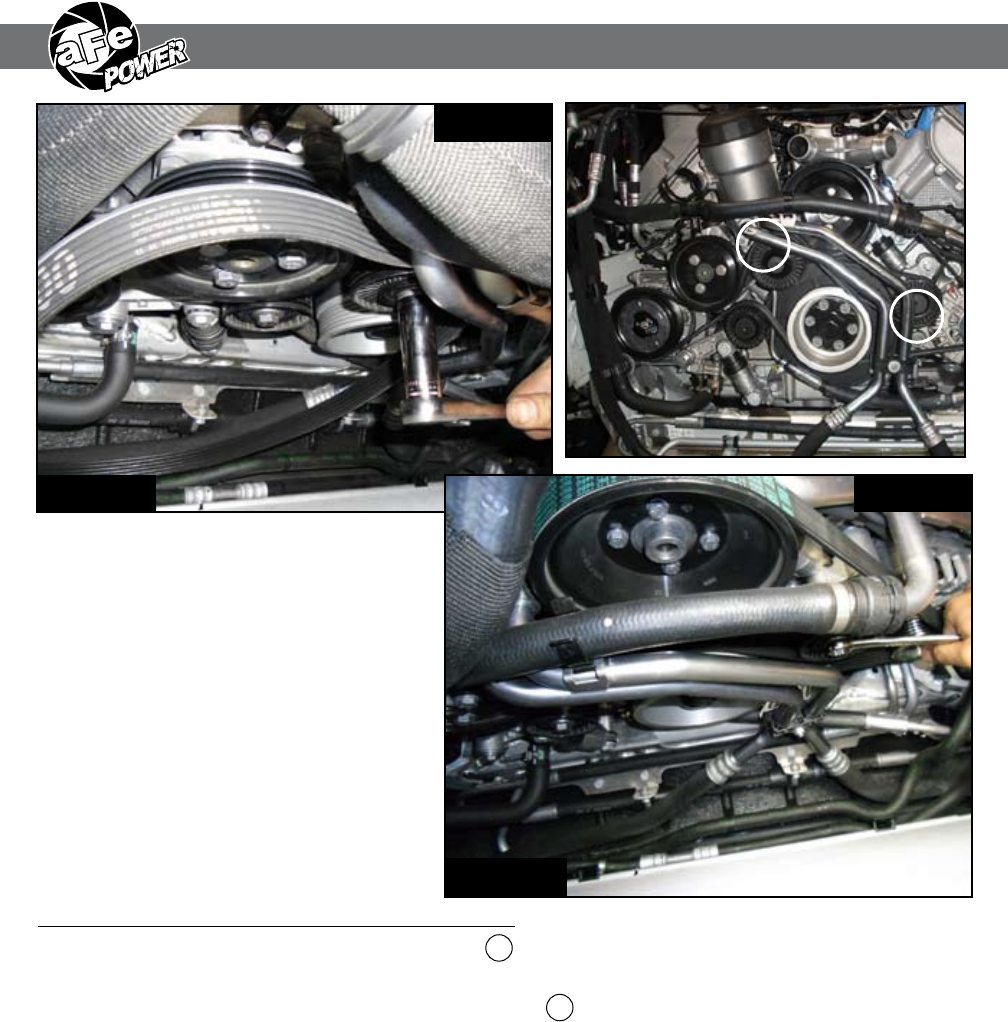

Refer to Figure E-1 & 2 for steps 10-11
Step 10: Using 16 mm socket, remove idler pulley 9 located between power steering and
water pump.
Step 11: Using 14 mm wrench, turn tensioner clockwise 10 to retract it and slide water pump/
alternator belt off.
Page 8
REMOVAL
Figure E-1
Figure E-2
REMOVAL
9
10
