Owners manual

9992 –09-13 F150 FONT Coilovers (RevB).docx

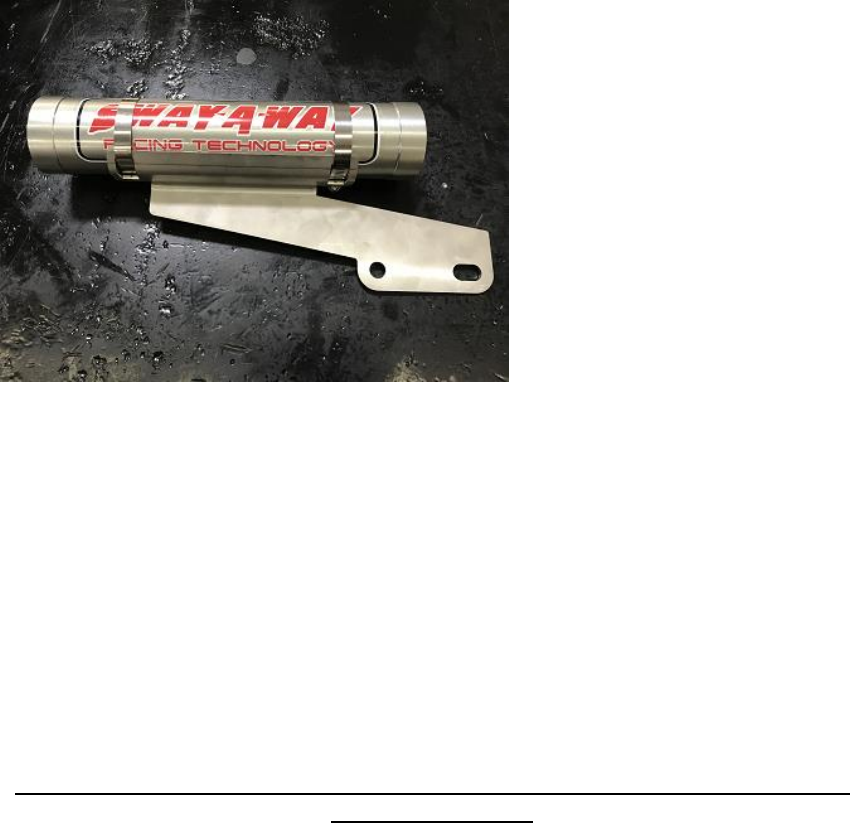

19. Place the reservoir in the bracket and tighten the hose clamps. Hose clamps should
be placed through the openings in the bracket.
20. Double check that every bolt that was removed has been retightened. Reinstall
wheels and tighten lug nuts to factory spec.
21. If you are happy with the achieved lift you are done. If you would like to change the
height of the vehicle, you can use the supplied spanner wrench to raise or lower the
height. Loosen the set screw on the coil nut, then turn clock wise to raise the
vehicle, or counter-clockwise to lower the vehicle. Repeat until you have achieved
the desired lift. Lifting the vehicle from the frame will take pressure off the spring and
make it easier to turn. Remember to tighten the setscrew when all adjusting has
been completed.
After you have finished installing your suspension kit, you must have the
front end aligned.
