12. Place and raise the jack under the lower arm to take the weight off the shock.
13. Use the 16mm deep socket to remove the 3 nuts holding the top of the shock to the
mount
14. Remove the lower shock mount bolt using the 30mm socket and impact gun on the
nut and a crescent wrench on the bolt head.
15. Use the ball joint remover to remove the upper spindle ball joint and slightly lower
the jack to allow the arm to droop.

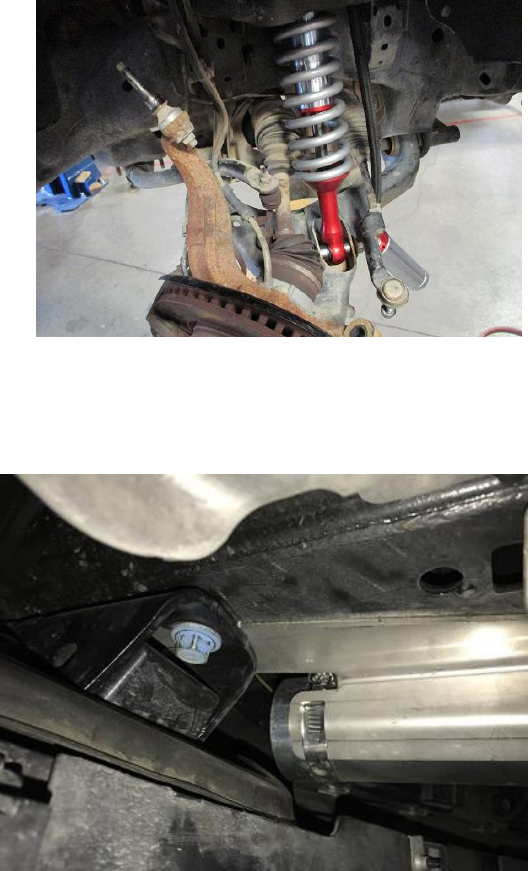

16. Remove the old shock and install the new shock by reversing the above steps. Be
sure to reconnect the ABS sensor plug, and reinstall the sensor, brake line, and
sensor wire back into the clip on the upper arm. WARNING: the shocks are
directional. When installing the new shocks, be sure the 90° fitting in the top cap is
pointing forward and the reservoir hose is routed under the upper arm.
17. Remove front tow hooks.
18. Install Reservoir Brackets in between the tow hook and frame and reuse bolts
