Owners manual

9992 –09-13 F150 FONT Coilovers (RevB).docx
Removal and Installation Procedure for F150 Front
(Shocks are already charged with 200 PSI of Nitrogen)
1. Park the vehicle on a level concrete surface where it is safe to work on your vehicle.
2. Lock and center the steering wheel.
3. Place blocks in front and behind the rear tires so as to keep the vehicle from moving
forwards or backwards.

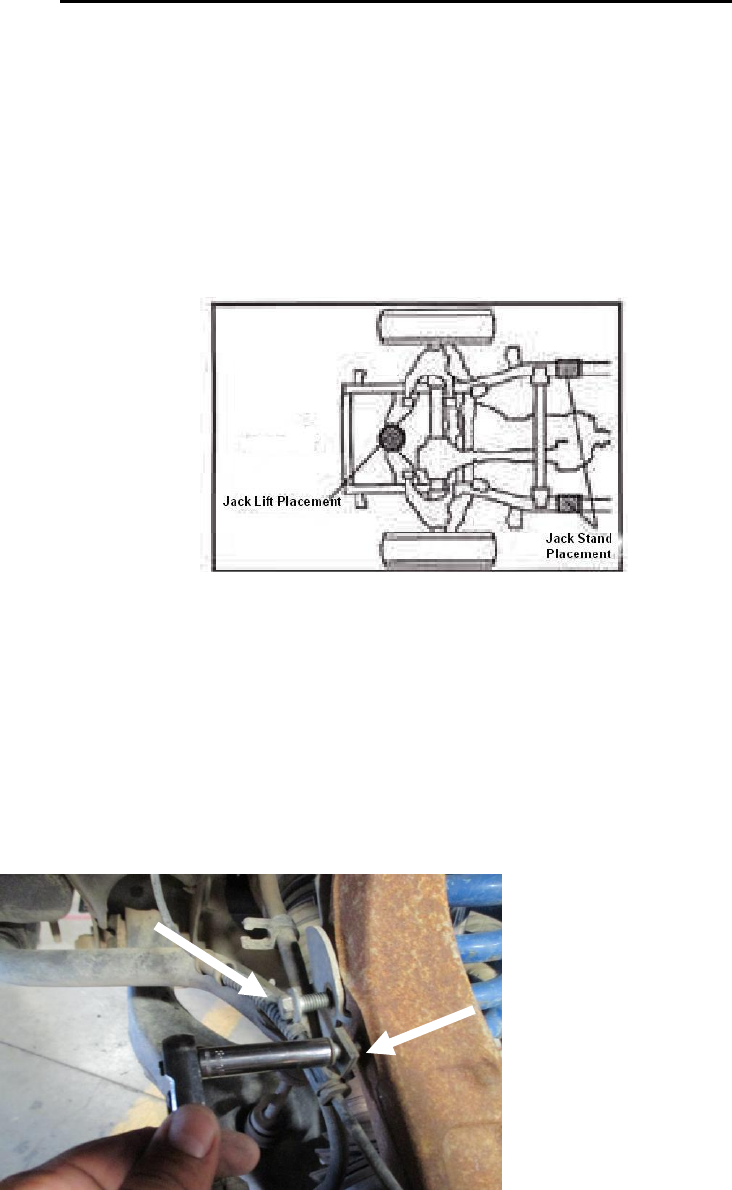

4. One side at a time, place the jack under the frame and raise the truck until the jack
stand can be placed under the lower arm mount.
5. Once both sides are safely on jack stands, use the 3/4in deep socket and impact
gun to remove the lug nuts and wheels.
6. Use the 21mm socket to remove the upper spindle ball joint nut.
7. Use the 18mm open end wrench and 8mm socket to remove the swaybar linkage.
8. Use the 8mm socket to remove the ABS sensor from the spindle.
9. Use the 10mm socket to remove the brake line from the spindle and upper arm.
10. Follow the ABS sensor wire to the back of the wheel well, disconnect the plug,
remove the wire from the clip on the upper arm, and let the wire hang free.
11. Use the 21mm socket to remove tie rod end from the spindle.
