APPENDIX F
REV
AERCO
INTERNATIONAL, INC. NORTHVALE, NJ 07647
AP - A - 830
B
DRWN BY:SJD
DATE:10/11/07
*NOT TO SCALE*

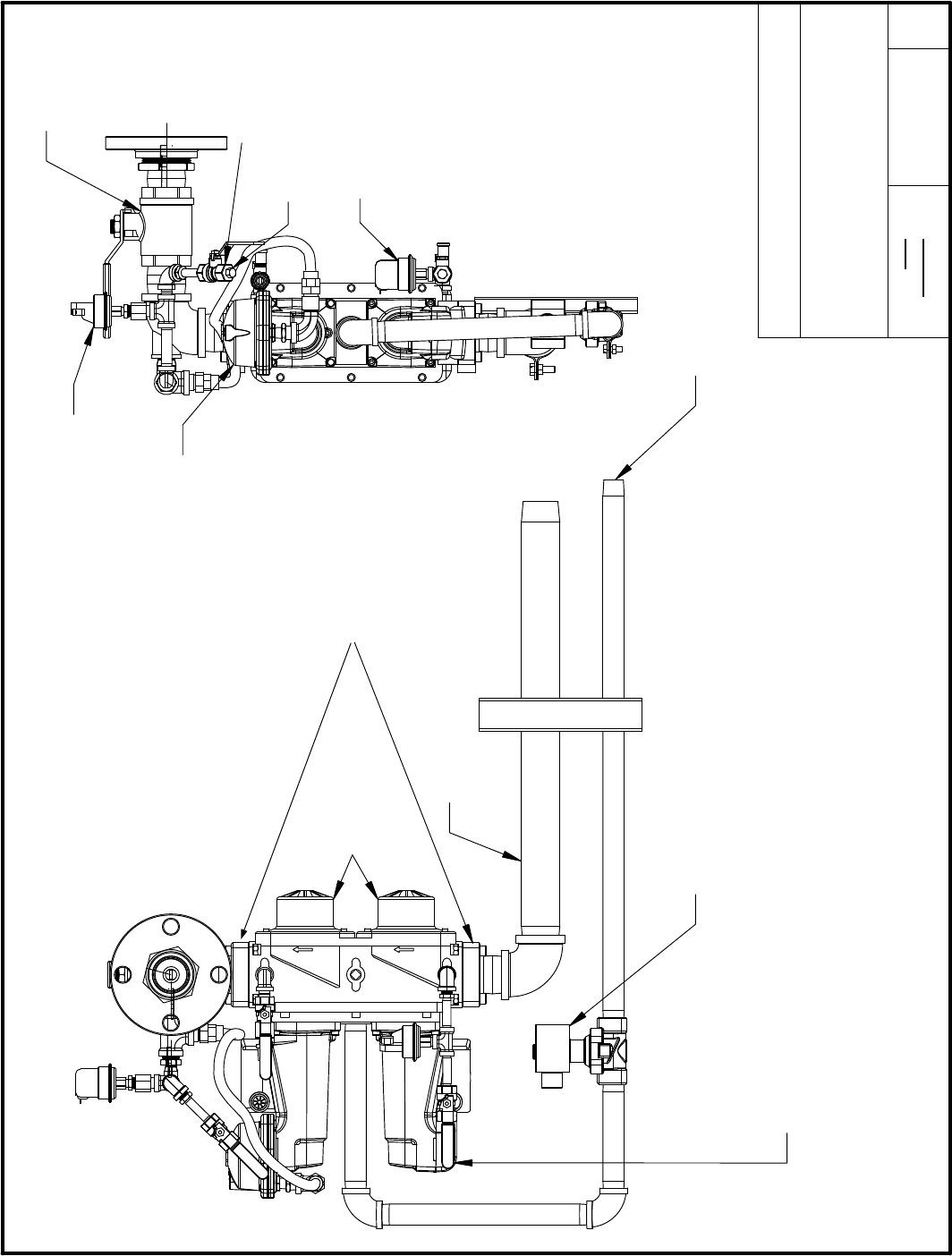

1.5" DOUBLE BODY SSOV P/N: 124137
NORMALLY OPEN VENT VALVE P/N: 122774
3/4" SCH.40 PIPE 1.5" SCH.40 PIPE
VENT TO ATMOSPHERE PER ANSI Z223.1 (NFPA54)
ENTIRE BMK 1.5 LN IRI GAS TRAIN P/N: 22039-2
1.5" DOUBLE BODY SSOV
CONNECTING FLANGE
P/N: 124178
SAFETY SHUT OFF VALVE ACTUATOR WITHOUT PROOF OF CLOSURE SWITCH P/N: 69038
SAFETY SHUT-OFF VALVE ACTUATOR P/N: 64048
HIGH GAS PRESSURE SWITCH P/N: 61002-3
1.5" FULL PORT BALL VALVE P/N: 92006-7
1/8" NPT PLUG (INSTALL MANOMETER HERE)
TEST COCK
BENCHMARK 1.5 LOW NOx
IRI GAS TRAIN
LOW GAS PRESSURE SWITCH P/N: 61002-1
