User Guide

2
CABLING CONSIDERATIONS
The maximum cable run for each LCD plus keypad is 300 feet from
the control panel.
Advantor recommends that you use 22AWG
twisted pair, shielded cable. When running LCD plus keypad cables:
1. DO NOT run cables parallel to AC wiring, unless the AC is in
metallic conduit.
2. Avoid mounting the keypad next to a light switch or electrical
outlet.
3. Keep wires away from fluorescent light fixtures. Fluorescent
lights produce a high level of electrical noise.
4. Keep cables away from high current devices (i.e., motors,
welders, etc.) which might induce spikes into the wires.
REMOVING THE BACK PLATE
The LCD plus keypad has four snaps around the edge of the enclo-
sure. To open the keypad, insert a small screwdriver into one of the
slots and gently turn the screwdriver until the enclosure snap opens.
Move to the next slot and repeat this procedure until the enclosure
opens. Usually only two adjacent snaps need to be opened to remove
the cover.
KEYPAD MOUNTING
WALL MOUNTING
The LCD plus keypad backplate has several mounting hole locations
(see Figure 2). For wall mounting use two of the middle mounting
holes.
Hold the back plate against the wall and mark
one of the mounting
holes. Using a level draw a horizontal line through the marked hole.
Place the backplate against the wall again and line up the mounting
holes with the level line and mark the second hole location.
Since the LCD plus keypad does not have a straight edge, using a
level to mark mounting hole locations ensures level keypad mount-
ing.
JUNCTION BOX MOUNTING
Depending on the orientation of the junction box, the LCD plus has
two sets of mounting holes that can be used for junction box
mount-
ing.
You can mount the LCD plus directly to a double or triple gang
outlet box, however, be aware that the backplate may not completely
cover the box.
To completely cover the junction box use the LCD plus adapter plate
(P/N 09004301).
NOTE: The adapter plate can only be used on a horizontally
mounted junction box. Junction boxes are normally
mounted in the horizontal position. This adapter plate is a
spacer that goes between the junction box and the LCD
plus backplate.
To install the adapter plate line up the mounting holes of the adapter
plate with the LCD plus backplate. Insert two screws through the
backplate and the adapter plate and attach it to the junction box.
Attach the LCD plus keypad to the backplate after completing all
wiring and checks.
Wiring
Access
Vertical junction box mounting with adapter plate.
Horizontal junction
box mounting holes.
Standard wall
mounting holes.

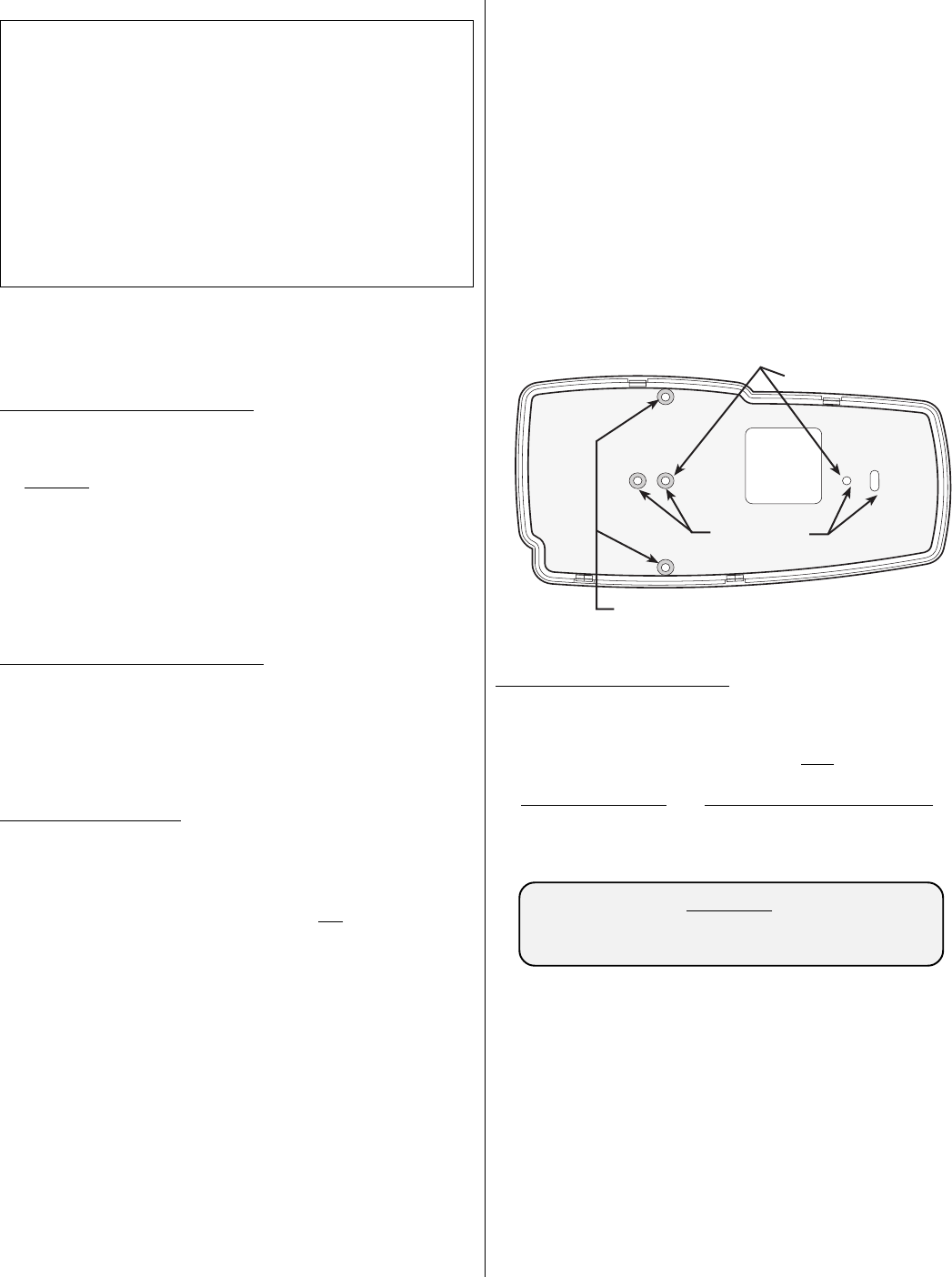

Figure 2. LCD plus Keypad Backplate Mounting Holes
LCD
plus
KEYPAD WIRING
Remove the LCD plus keypad Panduit connector and connect the
cable wires into the connector. To ensure proper connections, each
connection is silkscreened on the keypad circuit board.
The keypad connections at the control panel
must match the
connections at the LCD plus keypad. For example:
LCD plus KEYPAD CONTROL PANEL/MODULE
GND 24-Hour GND Source
DATA- DAT-, DATA- or DATALINE -
DATA+ DAT+, DATA+ or DATALINE +
+12V 24-Hour +12VDC Source
WARNING!
REVERSING THE +12V AND GND WIRES WILL
DAMAGE THE KEYPAD. CHECK POLARITY
BEFORE APPLYING POWER.
Table 2 lists compatible control panel and module connections
where you can find the required +12VDC keypad power and ground.
NOTE: Subtract each LCD plus keypad’s 45mA Normal Standby
and 25 to 125mA Alarm current from the control panel’s
backup battery loading chart.
ENCLOSURE:
4.0" H x 7.275" W x 0.88" D
POWER (from control panel):
9-15VDC
45mA Standby current
2
25-125mA Alarm current
(programmable)
ARM/DISARM:
Secure
Automatic
Automatic No-Dial
Single Key Arming
ALARMS:
Emergency Duress
Cancel/Disregard
Call Central
SUPERVISION:
Communication loss annunciated
at keypad after 1 minute.
INTERCONNECTION:
Four wires, 300 feet maximum
1
.
5Ω maximum line resistance.
OPERATING ENVIRONMENT:
32° F to 122° F / 0° C to 50° C
Table 1. LCD plus Keypad Specifications
NOTE 1: This restriction is due to power loss through cabling. With a
remote power supply the RS-485 link can extend up to 2,000
feet.
NOTE 2: 25mA for keypad, plus 20mA for backlighting at the 20%
default.
