85 Chapter B
13 NC
14 MIC_L IN Analog
15 MIC_R IN Analog
16 AGND GND

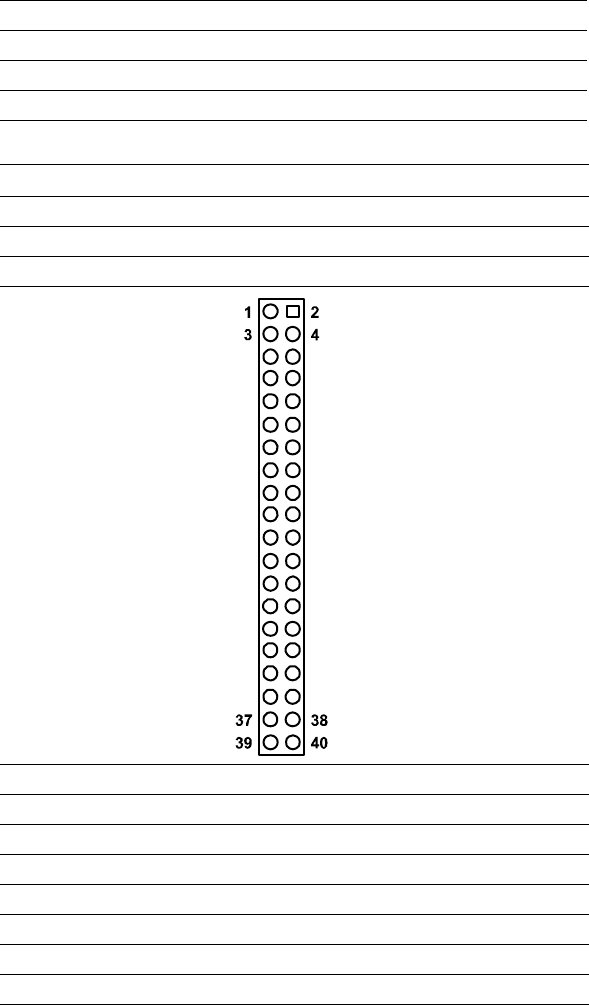

Table B.20: CN22 LVDS Connector
Part Number 1653920200
Footprint SPH20X2
Description *CONN. DF13-40DP-1.25V
Pin Pin Name Signal Type Signal Level
1 VDD_FP PWR +5V/+3.3V
2 VDD_FP PWR +5V/+3.3V
3GND
4GND
5 VDD_FP PWR +5V/+3.3V
6 VDD_FP PWR +5V/+3.3V
7 LVDS_A_D0N OUT LVDS
