79 Chapter B

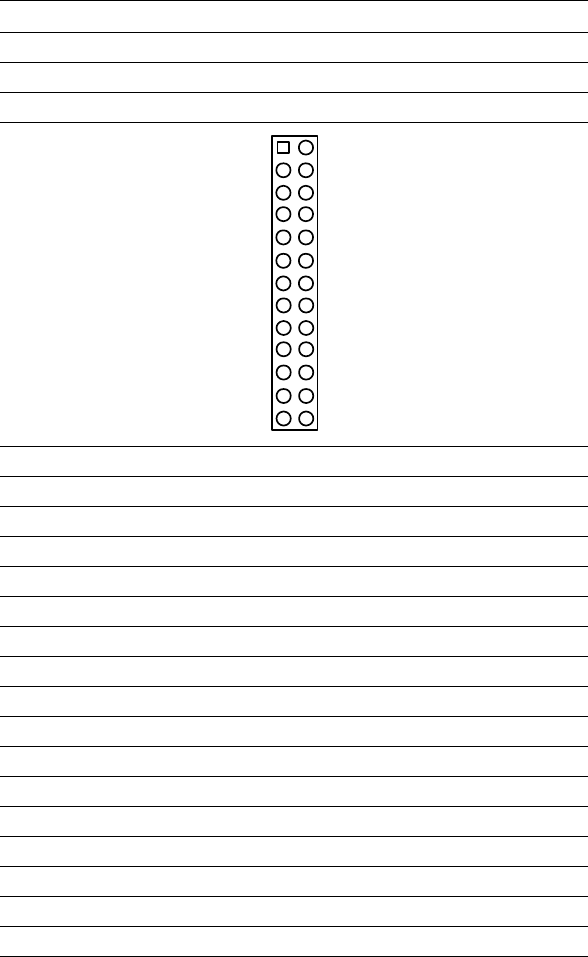

Table B.15: CN17 Print Port connector
Part Number 1653213260
Footprint BH13X2SV
Description BOX HEADER 13*2P 180D(M) 2.0mm SMD
Pin Pin Name Signal Type Signal Level
1 PIO_STB Out +5V
2 LPT_AFD# Out +5V
3 PIO_PD0 I/O +5V
4LPT_ERR#In +5V
5 PIO_PD1 I/O +5V
6LPT_INIT#Out +5V
7 PIO_PD2 I/O +5V
8LPT_SLIN#Out +5V
9 PIO_PD3 I/O +5V
10 GND GND
11 PIO_PD4 I/O +5V
12 GND GND
13 PIO_PD5 I/O +5V
14 GND GND
15 PIO_PD6 I/O +5V
16 GND GND
23
12
24
34
2625
