PCM-9584 User Manual 78
2 KB-DATA IN +5V
3MS-CLKIN +5V
4GNDPWR
5+5VPWR +5V
6MS-DATAIN+5V

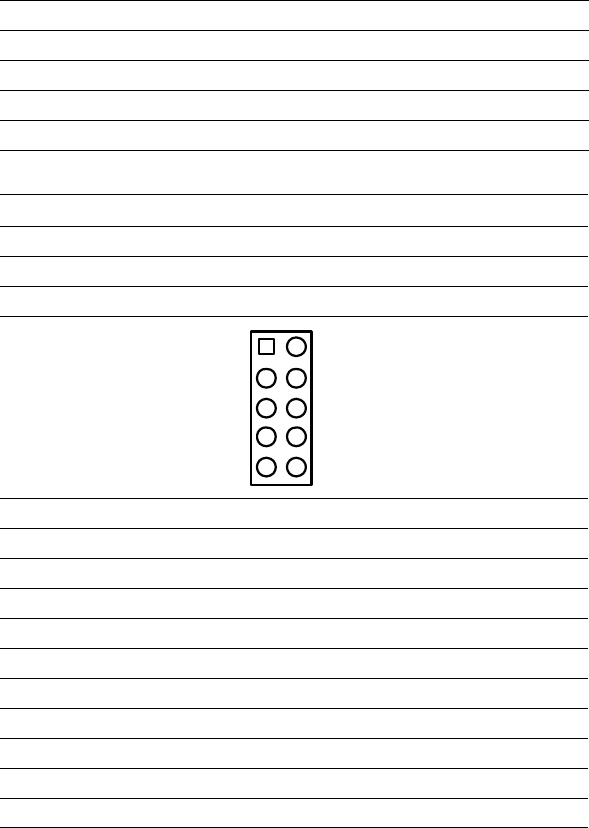

Table B.14: CN16 GPIO
Part Number 1653005261
Footprint JH5X2S-2M
Description PIN HEADER SMD 5*1P 180D(M) 2.0mm
Pin Pin Name Signal Type Signal Level
1+5VPWR +5V
2 GPIO4 I/O +5V
3 GPIO0 I/O +5V
4 GPIO5 I/O +5V
5 GPIO1 I/O +5V
6 GPIO6 I/O +5V
7 GPIO2 I/O +5V
8 GPIO7 I/O +5V
9 GPIO3 I/O +5V
10 GND GND
4
5
3
6
12
8
10
7
9
