77 Chapter B

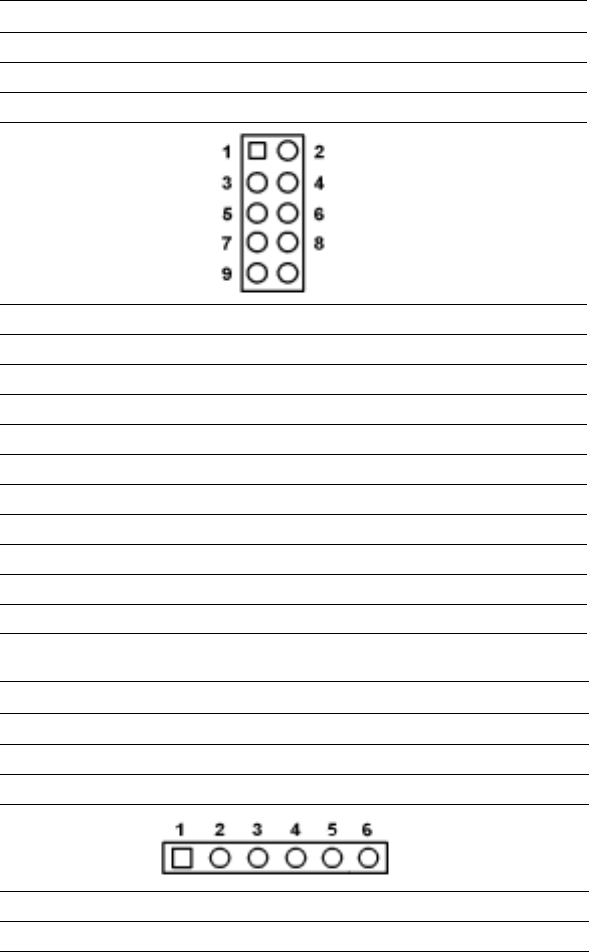

Table B.12: CN14 USB1/2 connector
Part Number 1653005260
Footprint JH5X2S-2M
Description PIN HEADER 5*2P 180D(M) 2.0mm SMD
Pin Pin Name Signal Type Signal Level
1 USBV1 PWR +5V
2 USBV1 PWR +5V
3 USBD1- I/O USB
4 USBD2- I/O USB
5 USBD1+ I/O USB
6 USBD2+ I/O USB
7GNDGND
8GNDGND
9GNDGND
10 NC
Table B.13: CN15 KB/MS
Part Number 1653205260
Footprint BH5X2SV
Description BOX HEADER DIP 6*1 180D (M) 2.0mm
Pin Pin Name Signal Type Signal Level
1 KB-CLK IN +5V
