PCM-9584 User Manual 76
9GNDGND
10 NC

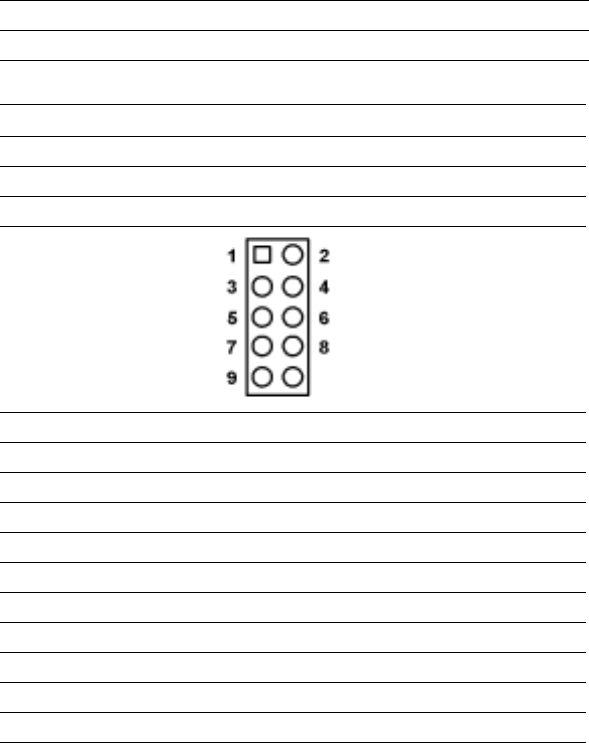

Table B.11: CN13 USB3/4 connector
Part Number 1653005260
Footprint JH5X2S-2M
Description PIN HEADER 5*2P 180D(M) 2.0mm SMD
Pin Pin Name Signal Type Signal Level
1 USBV2 PWR +5V
2 USBV2 PWR +5V
3 USBD2- I/O USB
4 USBD3- I/O USB
5 USBD2+ I/O USB
6 USBD3+ I/O USB
7GNDGND
8GNDGND
9GNDGND
10 NC
