75 Chapter B

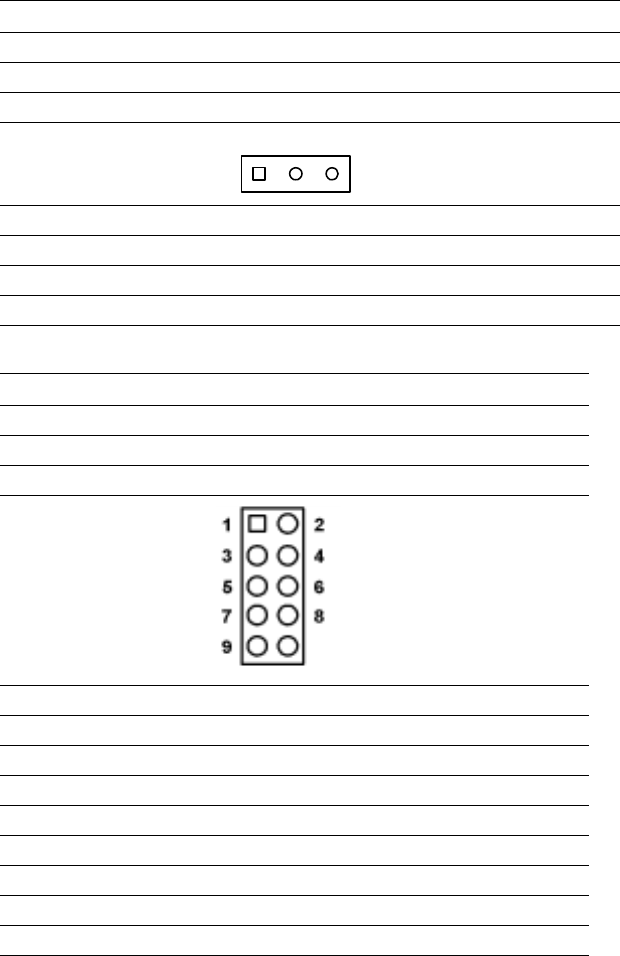

Table B.9: CN11 CPU FAN connector
Part Number 1655003010
Footprint JH5X2S-2M
Description Wafer 2.54mm 3P 180D(M) DIP W/LOCK22272031 Molex
Pin Pin Name Signal Type Signal Level
1GND GND
2 +12V PWR +12V
3 FANIO2 OUT
Table B.10: CN12 USB5/6 connector
Part Number 1653005260
Footprint JH5X2S-2M
Description PIN HEADER 5*2P 180D(M) 2.0mm SMD
Pin Pin Name Signal Type Signal Level
1 USBV3 PWR +5V
2 USBV3 PWR +5V
3 USBD4- I/O USB
4 USBD5- I/O USB
5 USBD4+ I/O USB
6 USBD5+ I/O USB
7GNDGND
8GNDGND
1 23
