User manual
Table Of Contents
- Contents
- Chapter 1 Introduction
- Chapter 2 Installation
- 2.1 Jumpers
- 2.2 Connectors
- 2.3 Locating jumpers and Connectors
- 2.4 Setting Jumpers
- 2.5 Clear CMOS (JP2)
- 2.6 Installing DIMMs
- 2.7 IDE, CDROM hard drive connector (CN18)
- 2.8 Solid State Disk
- 2.9 Parallel port connector (CN17)
- 2.10 Keyboard and PS/2 mouse connector (CN15)
- 2.11 Front Panel Connector (CN5)
- 2.12 Power connectors (CN11,CN1)
- 2.13 Power ON/OFF switch con. pin 11-12 of CN5
- 2.14 Audio AC'97 Link interfaces (CN21)
- 2.15 COM port connector (CN19)
- 2.16 VGA/LVDS interface connections (CN26, CN22)
- 2.17 TV-out interface
- 2.18 Ethernet configuration (CN6, CN10)
- 2.19 USB connectors (CN12,CN13,CN14)
- 2.20 LCD Backlight connector (CN23)
- 2.21 SATA Connector (CN7, CN9)
- 2.22 DI/O connector (CN16)
- 2.23 CPU Fan power supply connector (CN11)
- Chapter 3 Software Configuration
- Chapter 4 Award BIOS Setup
- 4.1 System test and initialization
- 4.2 Award BIOS setup
- 4.2.1 Entering setup
- 4.2.2 Standard CMOS Features setup
- 4.2.3 Advanced BIOS Features setup
- 4.2.4 Advanced Chipset Features setup
- 4.2.5 Integrated Peripherals
- 4.2.6 Power Management Setup
- 4.2.7 PnP/PCI Configurations
- 4.2.8 PC Health Status
- 4.2.9 Frequency/Voltage Control
- 4.2.10 Load Optimized Defaults
- 4.2.11 Set Password
- 4.2.12 Save & Exit Setup
- 4.2.13 Exit Without Saving
- Chapter 5 PCI Graphic Setup
- Chapter 6 Audio Setup
- Chapter 7 LAN Configuration
- Appendix A Prog. GPIO & W’dog Timer
- A.1 Supported GPIO Register
- A.2 Watchdog programming
- Table B.1: CN1 Power Connector
- Table B.2: CN2 LAN LED
- Table B.3: CN4 PCI -5V & -12V Input
- Table B.4: CN5 SYSTEM PANEL
- Table B.5: CN6 LAN1 CONNECTOR
- Table B.6: CN7 SATA2 connector
- Table B.7: CN9 SATA1 connector
- Table B.8: CN10 LAN2 CONNECTOR
- Table B.9: CN11 CPU FAN connector
- Table B.10: CN12 USB5/6 connector
- Table B.11: CN13 USB3/4 connector
- Table B.12: CN14 USB1/2 connector
- Table B.13: CN15 KB/MS
- Table B.14: CN16 GPIO
- Table B.15: CN17 Print Port connector
- Table B.16: CN18 IDE connector
- Table B.17: CN19 COM1/2/3/4 connector
- Table B.18: CN20 PC104+ Connector
- Table B.19: CN21 AUDIO connector
- Table B.20: CN22 LVDS Connector
- Table B.21: CN23 LCD Backlight
- Table B.22: CN24 CD_IN connector
- Table B.23: CN25 48bit LVDS Connector
- Table B.24: CN26 CRT connector
- Table B.25: CN27 SYS FAN connector
- Table B.26: CN28 Inverter connector
- Table B.27: CN29 SPK-OUT connector
- Table B.28: CN30 Compack II W/Ejector
- Table B.29: CN31 MINI PCI connector
- Table B.30: CN32 MIO USB connector
- Appendix C System Assignments
- Appendix D Optional Extras
- Appendix E Mechanical Drawings
- Appendix F AT/ATX Power setting
11 Chapter 2
2.2 Connectors
Onboard connectors link the PCM-9584 to external devices such as hard
disk drives, a keyboard, or floppy drives. The table below lists the func-
tion of each of the board’s connectors.

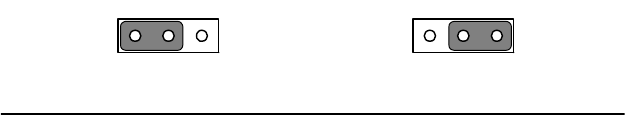

J8 CPU Dothan/Banias Select
(1-2).(5-6) Dothan
(1-2).(3-4) Banias
J9 ATX/AT Power Select
(1-2) ATX Power
(2-3) AT Power
Table 2.2:
CN1 Power connector
CN2 LAN LED
CN4 PCI -5V & -12V Input
CN5 SYSTEM PANEL
CN6 LAN1 connector
CN7 SATA2 connector
CN9 SATA1 connector
CN10 LAN2 connector
CN11 CPU FAN connector
CN12 USB5/6 connector
CN13 USB3/4 connector
CN14 USB1/2 connector
CN15 KB/MS connector
CN16 GPIO connector
CN17 Print Port connector
123 1 23
