PCM-9584 User Manual 10

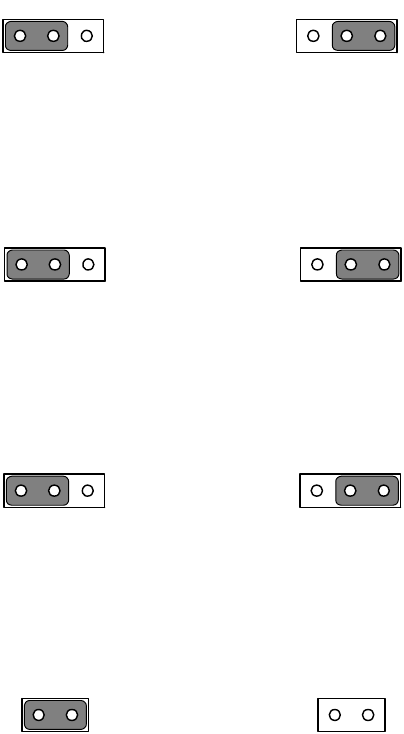

JP4 VDD_LVDS_PANEL POWER Select

1-2 3.3V

2-3 5V

JP5 VDD_FP POWER Select

(1-2) 3.3V

(2-3) 5V

JP6 +VCCA_PROC_IN Select

(1-2) 533MHz FSB & ULV P-M CPU

(2-3) 400MHz FSB CPU

JP7 Compact Flash Master/Slave Select

(1-2) Master

(NONE) Slave

123 1 23

12 12
