PCM-9584 User Manual 8
Chapter 2 Installation
2.1 Jumpers
The PCM-9584 has a number of jumpers that allow you to configure your
system to suit your application. The table below lists the functions of the
various jumpers.
2.1.1 Jumpers setting drawing
Table 2.1: Jumpers
Label Function
JP1 PCIVIO POWER Select
JP2 CLEAR CMOS
JP3 COM2 RS232/422/485 Select
JP4 VDD_LVDS_PANEL POWER Select
JP5 VDD_FP POWER Select
JP6 +VCCA_PROC_IN Select
JP7 Compact Flash Master/Slave Select
J8 CPU Dothan/Banias Select
J9 ATX/AT Power Select

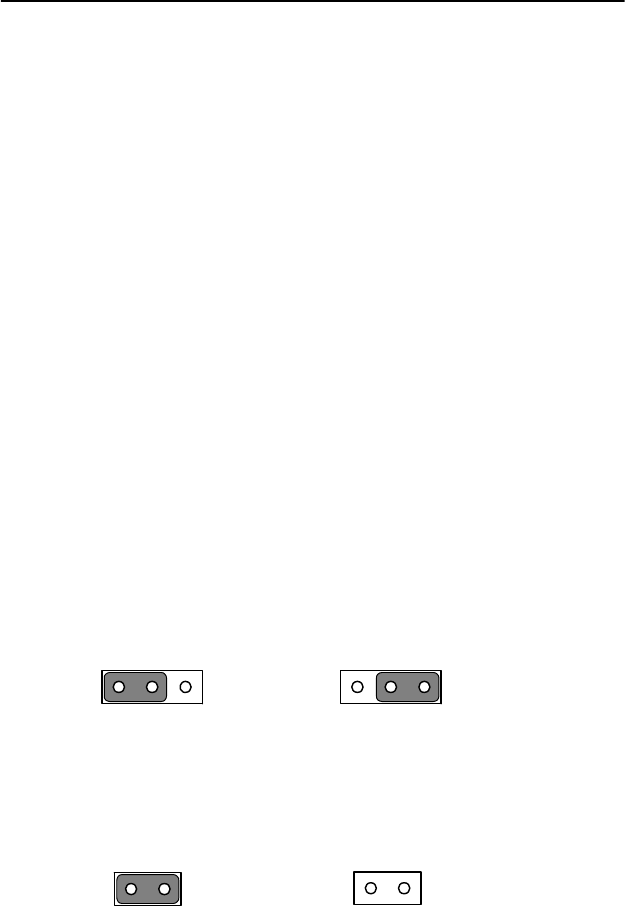

JP1: PCI VI/O POWER Select
PIN FUNCTION
1-2 With +5V
2-3 With +3.3V
JP2 CLEAR CMOS
1-2 CLEAR CMOS
NONE NORMAL
123 1 23
12
12
