91 Chapter B

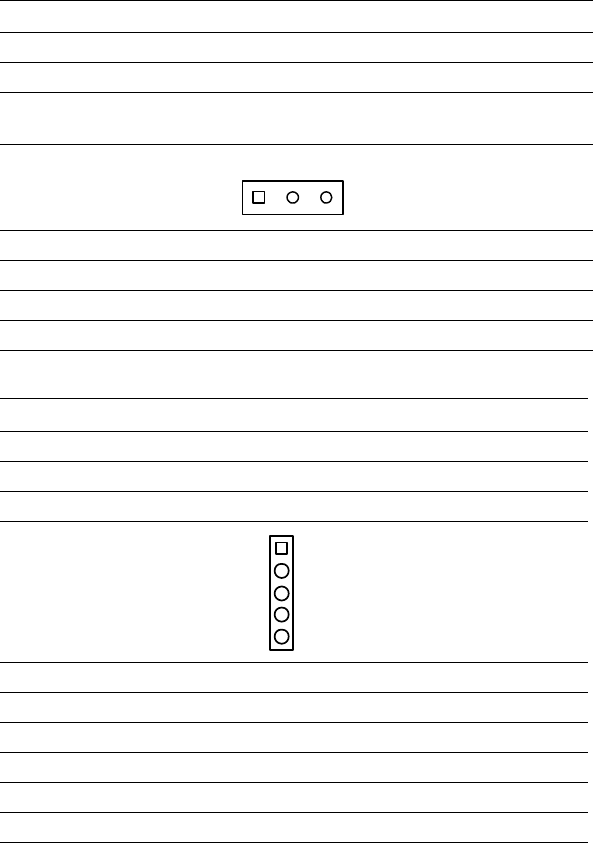

Table B.25: CN27 SYS FAN connector
Part Number 1655003010
Footprint JH5X2S-2M
Description Wafer 2.54mm 3P 180D(M) DIP W/LOCK22272031
Molex
Pin Pin Name Signal Type Signal Level
1GNDGND
2 +12V PWR +12V
3FANIO2OUT
Table B.26: CN28 Inverter connector
Part Number 1655305020
Footprint WHL5V-2M
Description WAFER BOX 2.0mm 5P 180D MALE W/LOCK
Pin Pin Name Signal Type Signal Level
1 +12V PWR +12V
2GNDGND
3 LVDS1_BKLTEN OUT +3.3V
4 LVDS1_VBR OD +3.3V
5+5V PWR +5V
1 23
1
5
2
3
4
