PCM-9584 User Manual 90

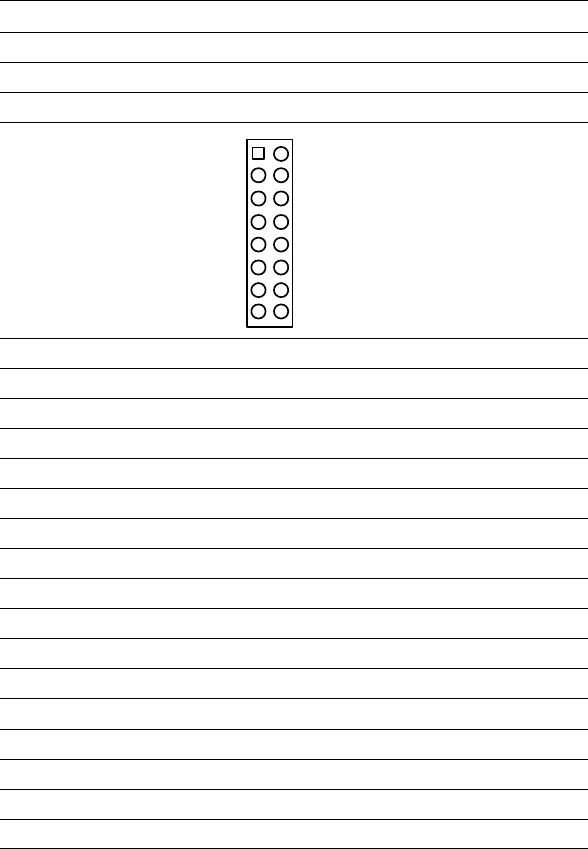

Table B.24: CN26 CRT connector
Part Number 1653208260
Footprint BH8X2SV
Description BOX HEADER 8*2P 180D(M) 2.00mm
Pin Pin Name Signal Type Signal Level
1 VGA_R OUT Analog
2 VGA VCC5 PWR +5V
3 VGA_G OUT Analog
4GNDGND
5 VGA_B OUT Analog
6NC
7NC
8 VGA_DDAT OUT Analog
9GNDGND
10 VGA_HS OUT +2.5V
11 GND GND
12 VGA_VS OUT +2.5V
13 GND GND
14 VGA_DCLK OUT +2.5V
15 GND GND
16 NC
2
15 16
1
4
3
13 14
