Appendix B USB Holder Installation
B.1 USB Holder Installation
In hazardous locations, sparks caused by the movement from a USB con-
nector which is even slightly loose could lead to a disaster. To prevent
this, we provide a set of accessories to secure the USB connectors. Fol-
low the below instructions to complete the installation. (The contents may
vary but the installation procedure is the same.)
1. Find the USB holders (3 pcs in total) in the accessory bag.
2. Refer to the following figures and attach the holders to the UNO-
1140FH for securing the USB connector

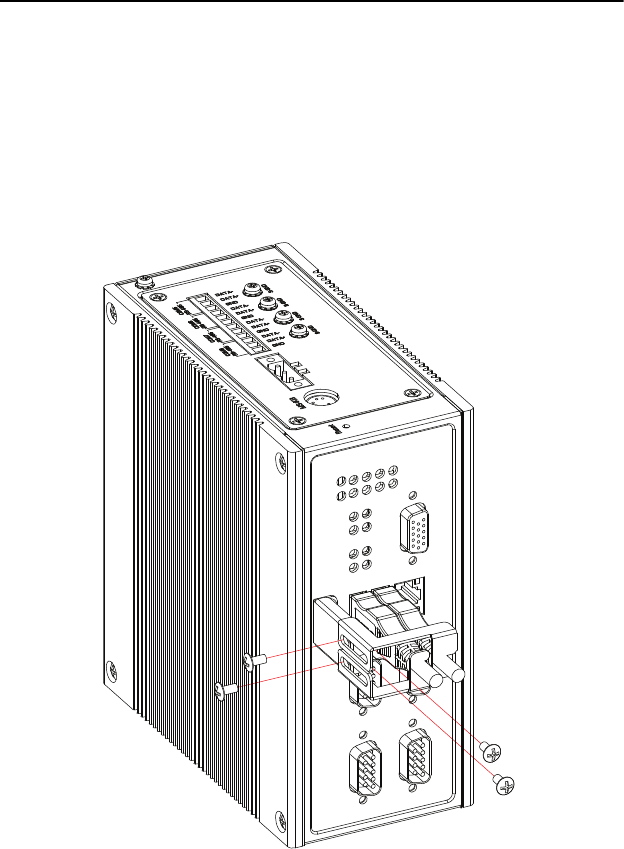

Figure B.1: USB Installation
