2.9 Power Button
UNO-3072LA standard power is ATX type. Please press the "Power" but-
ton to power on or power off. The power switch bottom featured "safety
switch" which user need to use finger tip to continue press 4 second to
shut the system down. It protect the system won't be accidently shut
down.
UNO-3072LA had also offers "AT power mode" available. Please close
the jumper on CN5 in order to use AT mde

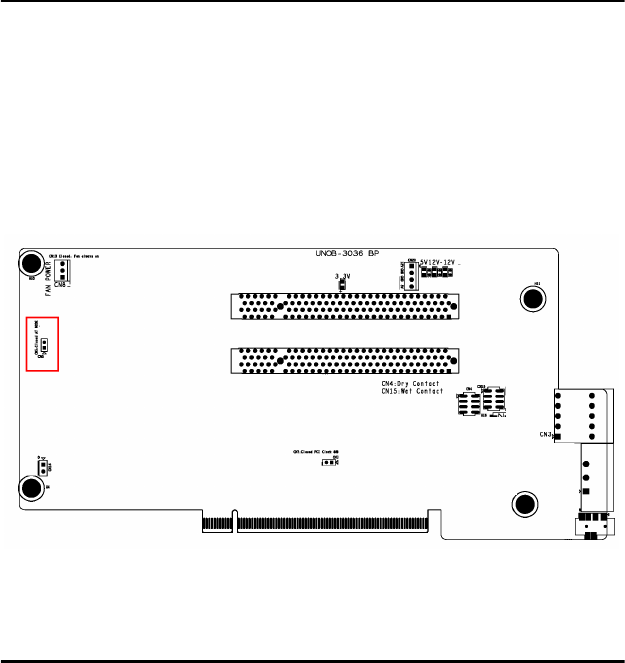

Figure 2.6: Hardware AT mode Jumper Location
2.10 Audio
UNO-3072LA supports audio Line out function.
