Appendix C Pin Assignments 125

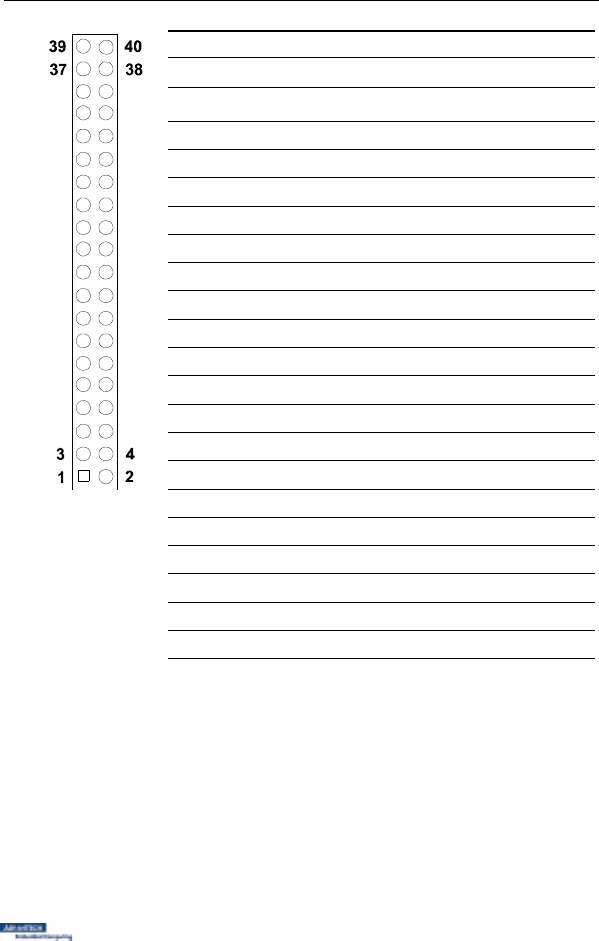

Table C-18: 24-bit LCD display connector (CN14)
Pin Signal Pin Signal
1 VDDSAFE5 2 VDDSAFE5
3 GND 4 GND
5 VDDSAFE3 6 VDDSAFE3
7 Vcon 8 GND
9P0 10P1
11 P2 12 P3
13 P4 14 P5
15 P6 16 P7
17 P8 18 P9
19 P10 20 P11
21 P12 22 P13
23 P14 24 P15
25 P16 26 P17
27 P18 28 P19
29 P20 30 P21
31 P22 32 P23
33 GND 34 GND
35 SHIFT CLOCK 36 FILM
37 M 38 LP
39 N/C 40 ENAVEE
Note: The model number of the CN18
socket is DF13A-40DP-1.25V
(Hirose Electric Co., Ltd.)
C.17 24-bit LCD display connector (CN14)
