1.8.3 CMOS clear (J1)

The PCA-6176 CPU card contains a jumper that can erase CMOS data

and reset the system BIOS information. Normally this jumper should

be set with pins 1-2 closed. If you want to reset the CMOS data, set J4

to 2-3 closed for just a few seconds, and then move the jumper back to

1-2 closed. This procedure will reset the CMOS to its default setting.

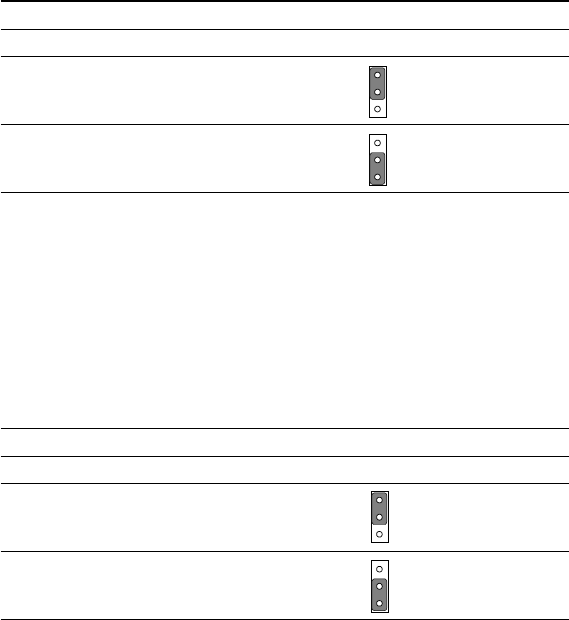

Table 1-4: CMOS clear (J1)

Function Jumper setting

* Keep CMOS data 1-2 closed

Clear CMOS data 2-3 closed

* default setting

1.8.4 Watchdog timer output (J2)

The PCA-6176 contains a watchdog timer that will reset the CPU or

send a signal to IRQ11 in the event the CPU stops processing. This

feature means the PCA-6176 will recover from a software failure or an

EMI problem. The J2 jumper settings control the outcome of what the

computer will do if the watchdog timer is triggered.

Table 1-5: Watchdog timer output (J2)

Function Jumper setting

IRQ11 1-2 closed

* Reset 2-3 closed

* default setting
