Chapter 2 Mounting
2.1.2 Panel Mounting
FPM-5151G/5171G/5191G can be mounted directly on a panel with additional
mounting brackets. Please refer to Figure 2.2 and follow the following steps:
1. Fix 10pcs panel bracket around the industrial monitor, refer to the below figure.
2. Fix into the panel by screwing the bracket.

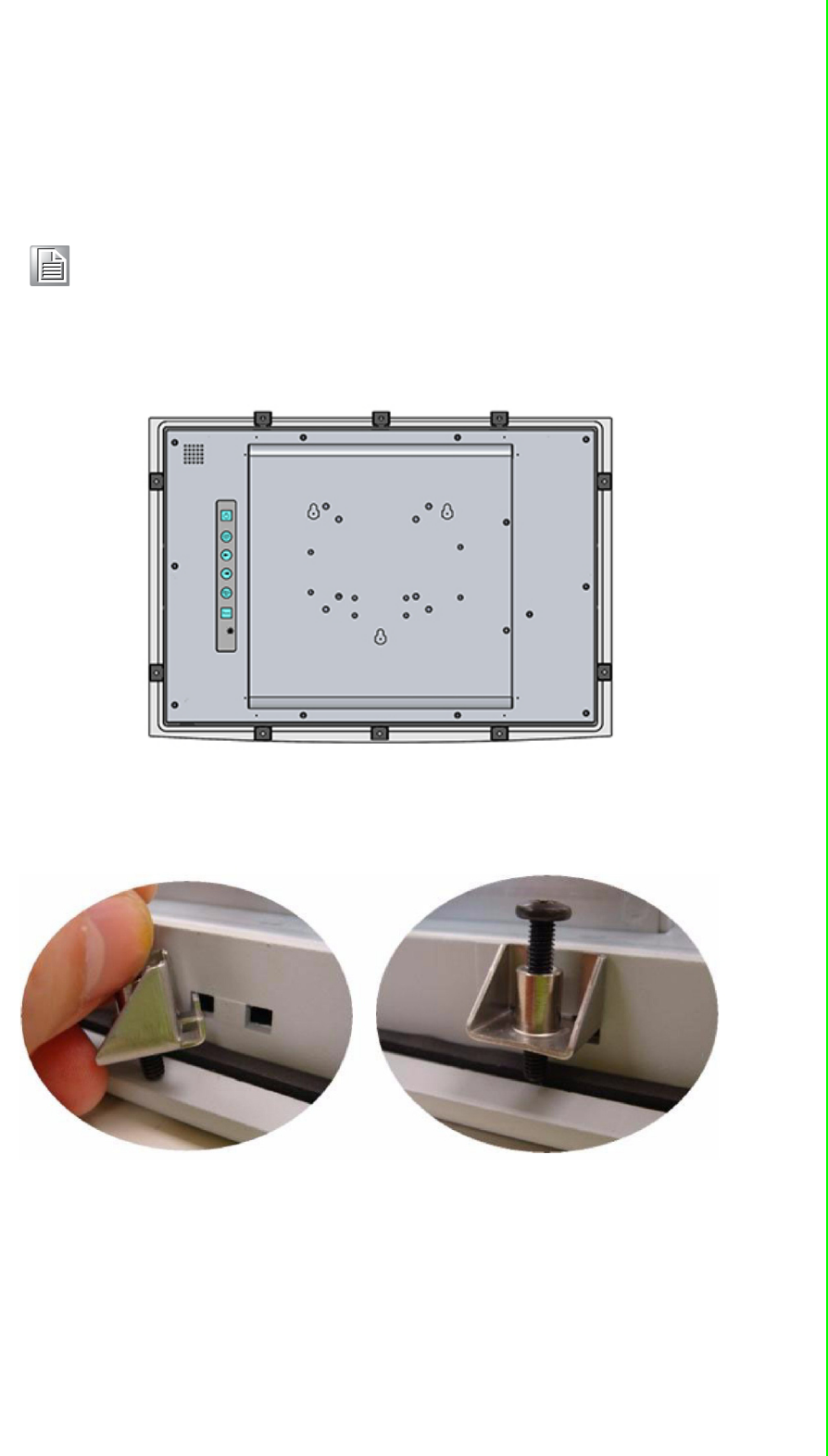

Figure 2.2 Panel Mounting
Figure 2.3 Panel Mounting
Note! You can use the materials provided in the accessory box for panel
mounting!
