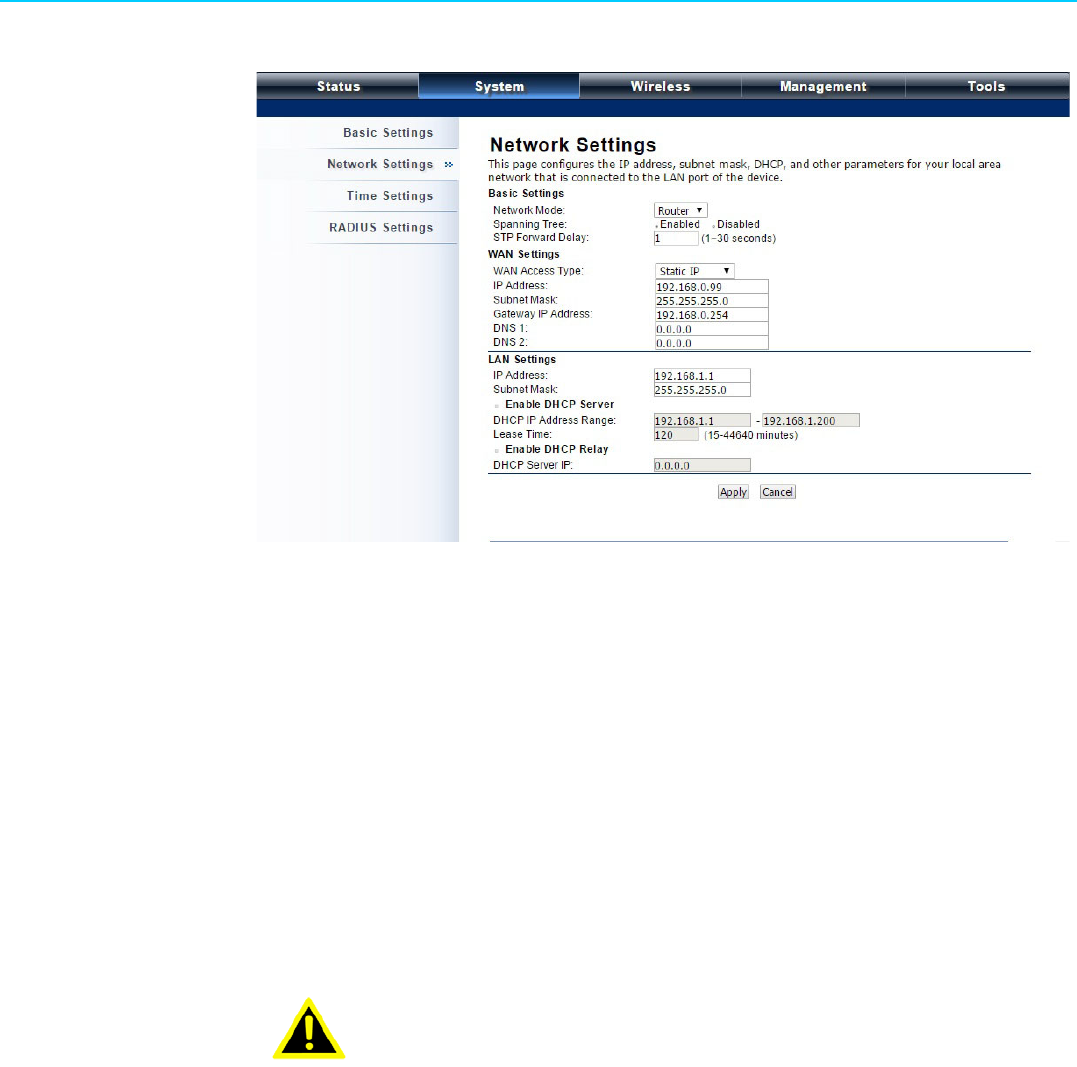

Figure 3.5 TCP/IP Settings (Router)
 WAN Access Type:
Specify the Internet access method to Static IP, DHCP or PPPOE. Users must
enter WAN IP Address, Subnet Mask, Gateway settings provided by your ISPs.
 LAN Settings:
When DHCP Server is disabled, users can specify IP address and subnet mask
for the Access Point manually. Make sure the specified IP address is unique on
your network in order to prevent IP conflict. When DHCP Server is enabled,
users may specify DHCP IP Address Range, DHCP Subnet Mask, DHCP Gate-
way and Lease Time (15-44640 minutes). A DHCP relay agents is used to for-
ward DHCP requests and replies between clients and servers when they are not
on the same physical subnet. To enable the DHCP relay agent, check the
“Enable DHCP Relay” checkbox and enter the IP address of the DHCP server.
Warning!  In AP mode, EKI-6332GN-AE/EKI-6331AN-BE must establish con-
nection with another wireless device before it is set to Router
mode. To access the unit in Router mode via wired port, please
type the WAN IP address to enter the web page for WAN is on
wired port and LAN is on wireless port. Or, you can access device
through the wireless device connected with the Access Point.
 In wireless client mode, users can access the Access Point via its
wired port, for WAN is on wireless port and LAN is on wired port
when device is set to Router mode.
 Bridge mode and AP Repeater mode are similar to AP mode when
device is set to Router mode; WAN is on wired port and LAN is on
wireless port. Thus users must also connect the Access Point with
another wireless device before it is set to Router mode and access
the Access Point via the connected wireless device.
