Chapter
3
Chapter 3 I/O Modules
3-59

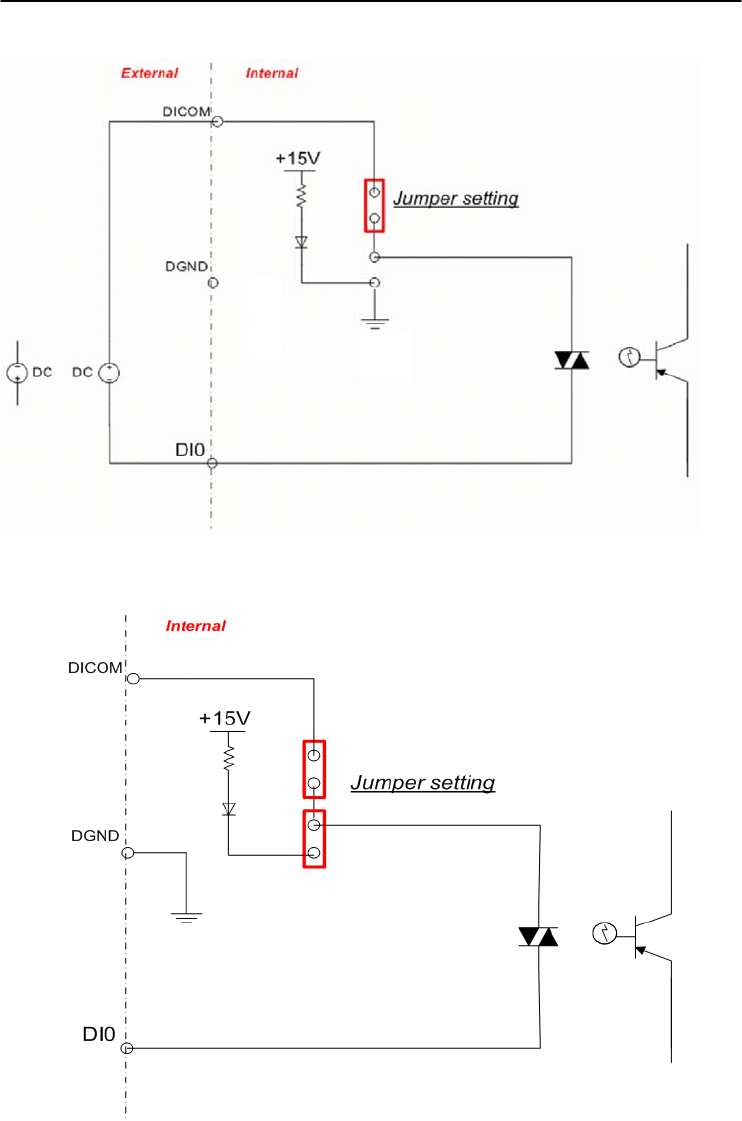

Figure 3-55b
ADAM-4055 Digital
Input Wet Contact Diagram
(Internal)
Figure 3-56a
ADAM-4055 Default Jum
per Setting for the
Digital Input Wi
ring
(Support dry and wet contact digital input at the same time)
