Data Acquisition Modules User's Manual

I/O Modules
3-
48 ADAM 4000 Series User’s Manual
Application Wiring

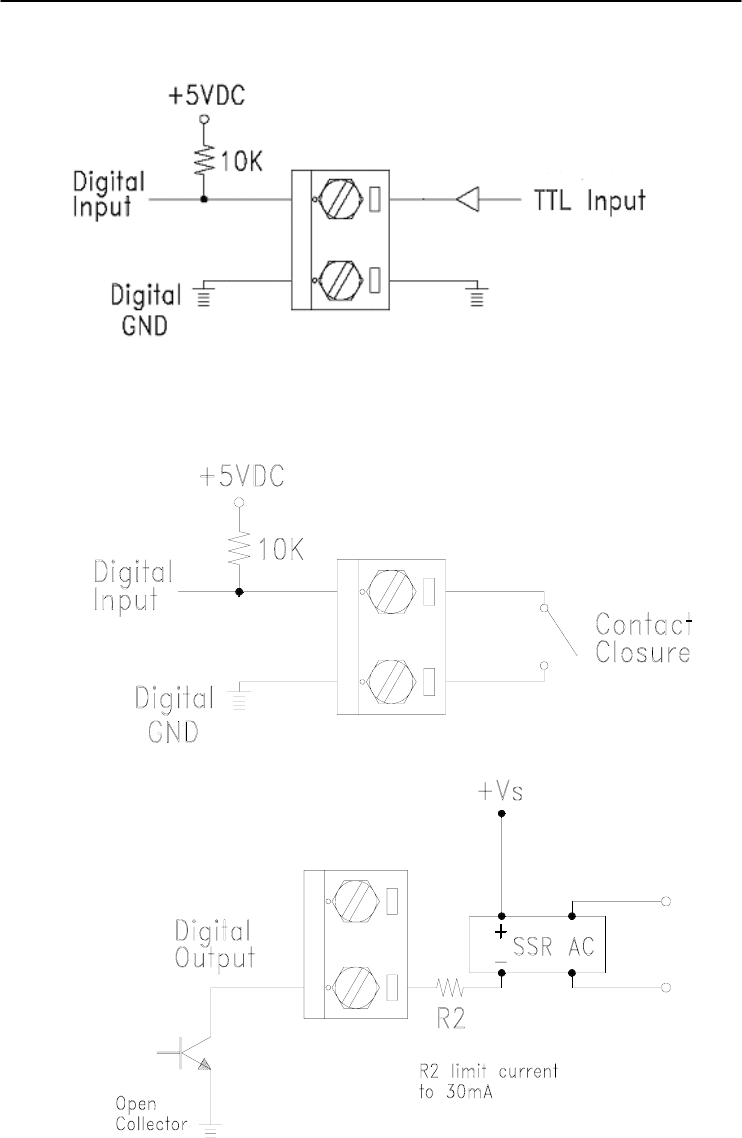

Figure 3-41 ADAM-4050 TTL Input Wiring Diagram
Figure 3-42 ADAM-4050 Contact Closure Input Wiring Diagram
Figure 3-43 ADAM-4050 Digital Output Wiring Diagram Used with SSR
