I/O Modu
les
3-
14
ADAM 4000 Series User’s Manual

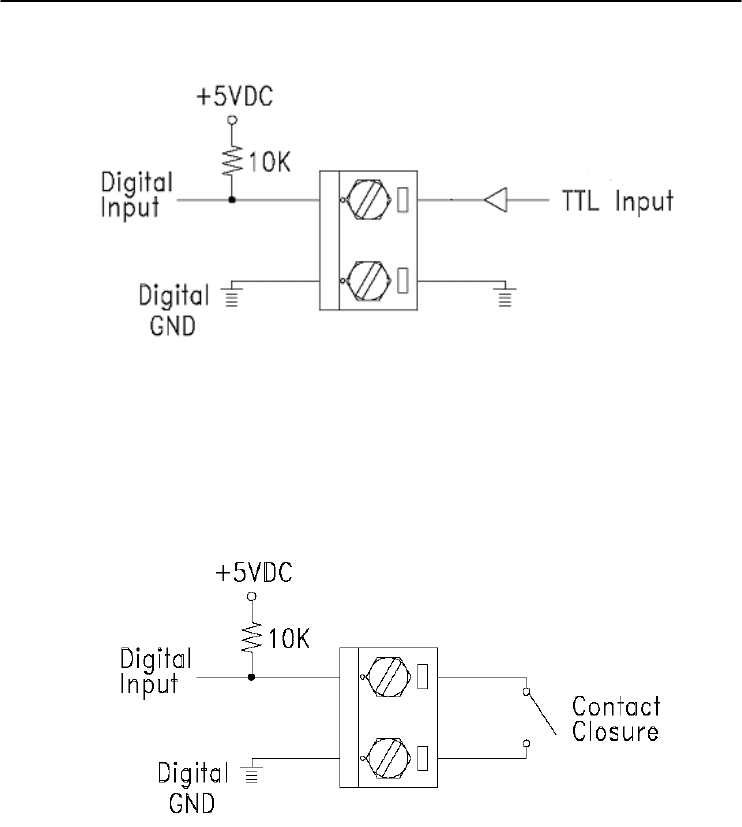

Figure 3-13
ADAM-4012 Digital Input Wiring
Diagram Used with TTL
Figure 3-14
ADAM-4012 Digital Input Wiring
Diagram
Used with Dry contact
