ARK-3399 User Manual 40
4.1 Introduction
If you want to completely disassemble the ARK-3399, follow the step-by-step proce-
dures below. Users should be aware that Advantech Co., Ltd. takes no responsibility
Whatsoever for any problems or damage caused by user disassembly of the ARK-
3399. Make sure the power cord of the ARK-3399 is unplugged before you start dis-
assembly.
1. Unscrew the bottom screws.

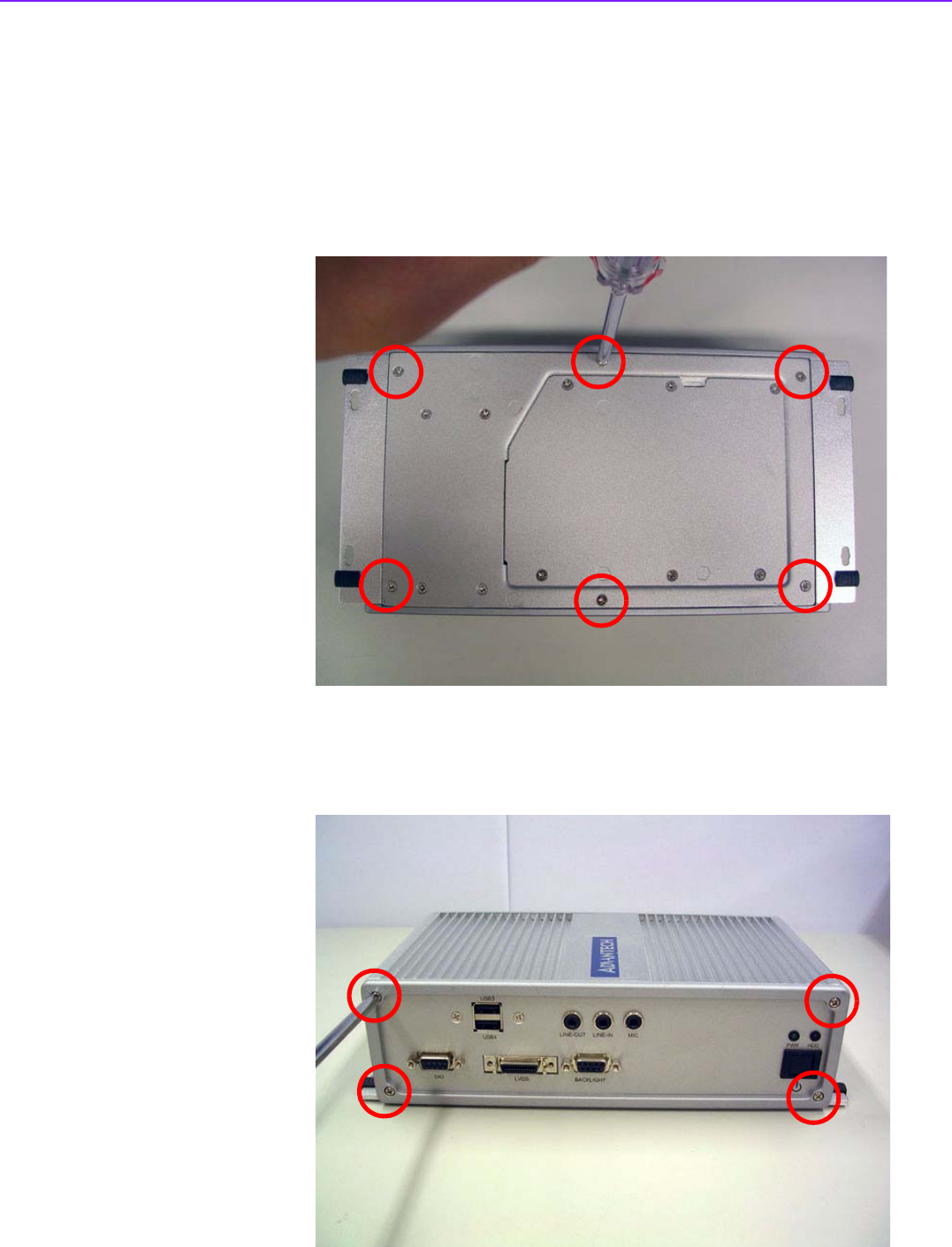

Figure 4.1 Unscrew the bottom screws
2. Unscrew the frame screws and remove the frame.
Figure 4.2 Unscrew the frame screws and remove the frame
